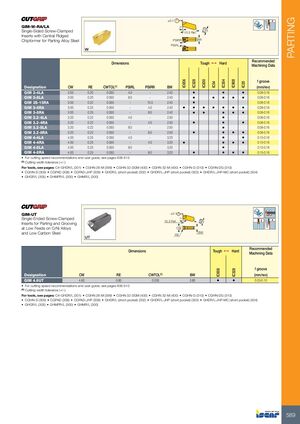

PARTING ±0.1 GIM-W-RA/LA 7˚ Single-Sided Screw-Clamped 15.3 Ref. 5 Inserts with Central Ridged Chipformer for Parting Alloy Steel PSIRR BW PSIRL Recommended Dimensions Tough 1 Hard Machining Data f groove IC656 IC328 IC830 IC354 IC908 IC54 IC20 Designation CW RE CWTOL(1) PSIRL PSIRR BW (mm/rev) GIM 3-4LA 3.00 0.20 0.050 4.0 - 2.40 • • • 0.08-0.16 GIM 3-8LA 3.00 0.20 0.050 8.0 - 2.40 • • • • • 0.08-0.16 GIM 3S-15RA 3.00 0.22 0.050 - 15.0 2.40 • 0.08-0.16 GIM 3-4RA 3.00 0.25 0.050 - 4.0 2.40 • • • • • • • 0.08-0.16 GIM 3-8RA 3.00 0.25 0.050 - 8.0 2.40 • • • • • 0.08-0.16 GIM 3.2-4LA 3.20 0.22 0.050 4.0 - 2.50 • 0.08-0.16 GIM 3.2-4RA 3.20 0.22 0.050 - 4.0 2.50 • • • 0.08-0.16 GIM 3.2-8LA 3.20 0.22 0.050 8.0 - 2.50 • 0.08-0.16 GIM 3.2-8RA 3.20 0.22 0.050 - 8.0 2.50 • • • • 0.08-0.16 GIM 4-4LA 4.00 0.25 0.050 4.0 - 3.20 • • 0.10-0.16 GIM 4-4RA 4.00 0.25 0.050 - 4.0 3.20 • • • • 0.10-0.16 GIM 4-8LA 4.00 0.25 0.050 8.0 - 3.20 • 0.10-0.16 GIM 4-8RA 4.00 0.25 0.050 - 8.0 3.20 • • • • 0.10-0.16 • For cutting speed recommendations and user guide, see pages 606-615 (1) Cutting width tolerance (+/-) For tools, see pages: C#-GHDR/L (301) • CGHN 26-M (399) • CGHN 32-DGM (400) • CGHN 32-M (400) • CGHN-D (310) • CGHN-DG (310) • CGHN-S (309) • CGPAD (308) • CGPAD-JHP (309) • GHDR/L (short pocket) (302) • GHDR/L-JHP (short pocket) (303) • GHDR/L-JHP-MC (short pocket) (304) • GHGR/L (305) • GHMPR/L (300) • GHMR/L (300) GIM-UT ±0.1 Single-Ended Screw-Clamped 7° 15.3 Ref. 5 Inserts for Parting and Grooving at Low Feeds on CrNi Alloys CW and Low Carbon Steel BW RE Recommended Dimensions Tough 1 Hard Machining Data f groove IC656 IC328 Designation CW RE CWTOL(1) BW (mm/rev) GIM 4.6UT 4.60 0.60 0.030 3.80 • • 0.03-0.10 • For cutting speed recommendations and user guide, see pages 606-615 (1) Cutting width tolerance (+/-) For tools, see pages: C#-GHDR/L (301) • CGHN 26-M (399) • CGHN 32-DGM (400) • CGHN 32-M (400) • CGHN-D (310) • CGHN-DG (310) • CGHN-S (309) • CGPAD (308) • CGPAD-JHP (309) • GHDR/L (short pocket) (302) • GHDR/L-JHP (short pocket) (303) • GHDR/L-JHP-MC (short pocket) (304) • GHGR/L (305) • GHMPR/L (300) • GHMR/L (300) 589
