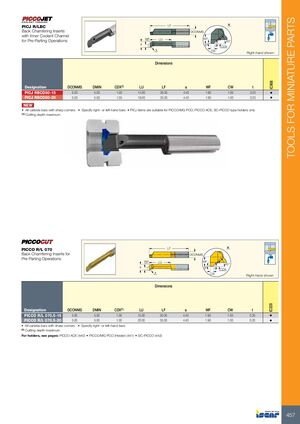

TOOLS FOR MINIATURE PARTS LF X PICJ R/LBC Back Chamfering Inserts DCONMS with Inner Coolant Channel WF LU WF for Pre-Parting Operations 45° a 8° t CDX X CW Right-hand shown Dimensions IC908 Designation DCONMS DMIN CDX(1) LU LF a WF CW t PICJ RBCD50-15 5.00 5.00 1.00 14.00 30.00 4.40 1.90 1.00 0.20 • PICJ RBCD50-20 5.00 5.00 1.00 19.00 35.00 4.40 1.90 1.00 0.20 • NEW • All carbide bars with sharp corners • Specify right- or left-hand bars • PICJ items are suitable for PICCO/MG PCO, PICCO ACE, SC-PICCO type holders only (1) Cutting depth maximum LF X PICCO R/L 070 Back Chamfering Inserts for DCONMS Pre-Parting Operations WF LU WF 45° a 8° t CDX X CW Right-hand shown Dimensions IC228 Designation DCONMS DMIN CDX(1) LU LF a WF CW t PICCO R/L 070.5-15 5.00 5.00 1.00 15.00 30.00 4.40 1.90 1.00 0.20 • PICCO R/L 070.5-20 5.00 5.00 1.00 20.00 35.00 4.40 1.90 1.00 0.20 • • All carbide bars with sharp corners • Specify right- or left-hand bars (1) Cutting depth maximum For holders, see pages: PICCO ACE (440) • PICCO/MG PCO (Holder) (441) • SC-PICCO (442) 457
