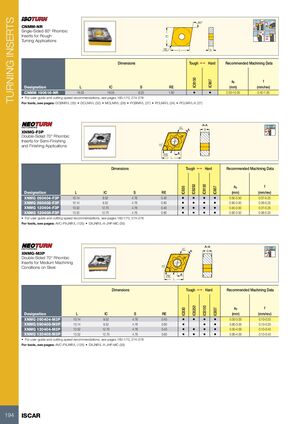

TURNING INSERTS 80° 95º CNMM-NR 95º 95º Single-Sided 80° Rhombic 75° Inserts for Rough IC 75º Turning Applications RE L S Dimensions Tough 1 Hard Recommended Machining Data IC8150 ap f IC907 Designation L IC S RE (mm) (mm/rev) CNMM 190616-NR 19.03 19.05 6.35 1.60 • • 2.00-10.00 0.40-1.00 • For user guide and cutting speed recommendations, see pages 160-170, 274-278 For tools, see pages: DCBNR/L (33) • DCLNR/L (32) • MCLNR/L (26) • PCBNR/L (27) • PCLNR/L (24) • PCLNR/L-X (27) A-A 15° IC MAX A S XNMG-F3P 93° Double-Sided 70° Rhombic Inserts for Semi-Finishing and Finishing Applications 70˚ RE A L Dimensions Tough 1 Hard Recommended Machining Data ap f IC8250 IC8150 IC830 IC807 Designation L IC S RE (mm) (mm/rev) XNMG 090404-F3P 10.14 9.52 4.76 0.40 • • • • 0.50-3.50 0.07-0.25 XNMG 090408-F3P 10.14 9.52 4.76 0.80 • • • • 0.90-3.50 0.08-0.25 XNMG 120404-F3P 13.52 12.70 4.76 0.40 • • • • 0.50-3.50 0.07-0.25 XNMG 120408-F3P 13.52 12.70 4.76 0.80 • • • • 0.90-3.50 0.08-0.25 • For user guide and cutting speed recommendations, see pages 160-170, 274-278 For tools, see pages: AVC-PXJNR/L (125) • DXJNR/L-X-JHP-MC (35) A-A 15° IC MAX A S XNMG-M3P 93° Double-Sided 70° Rhombic Inserts for Medium Machining Conditions on Steel 70˚ RE A L Dimensions Tough 1 Hard Recommended Machining Data ap f IC8250 IC8150 IC830 IC807 Designation L IC S RE (mm) (mm/rev) XNMG 090404-M3P 10.14 9.52 4.76 0.40 • • • • 0.50-3.00 0.10-0.35 XNMG 090408-M3P 10.14 9.52 4.76 0.80 • • • 0.80-3.00 0.10-0.35 XNMG 120404-M3P 13.52 12.70 4.76 0.40 • • • • 0.50-4.00 0.10-0.40 XNMG 120408-M3P 13.52 12.70 4.76 0.80 • • • • 0.80-4.00 0.10-0.40 • For user guide and cutting speed recommendations, see pages 160-170, 274-278 For tools, see pages: AVC-PXJNR/L (125) • DXJNR/L-X-JHP-MC (35) 194 ISCAR
