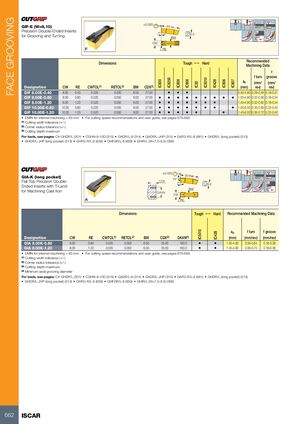

FACE GROOVING ±0.025 GIF-E (W=8,10) 30 Ref. Precision Double-Ended Inserts 7° 6.4 for Grooving and Turning BW CW RE Recommended Dimensions Tough 1 Hard Machining Data f f turn groove IC8250 IC5010 ap IC830 IC808 IC908 IC428 IC806 IC807 (mm/ (mm/ IC20 Designation CW RE CWTOL(1) RETOL(2) BW CDX(3) (mm) rev) rev) GIF 8.00E-0.40 8.00 0.40 0.020 0.030 6.00 27.00 • • • 0.50-4.80 0.29-0.48 0.18-0.31 GIF 8.00E-0.80 8.00 0.80 0.020 0.050 6.00 27.00 • • • • • • • • • 1.00-4.80 0.32-0.56 0.18-0.34 GIF 8.00E-1.20 8.00 1.20 0.020 0.050 6.00 27.00 • • • • • • • 1.45-4.80 0.32-0.62 0.18-0.34 GIF 10.00E-0.80 10.00 0.80 0.020 0.050 8.00 27.00 • • • • • • • • 1.00-6.00 0.35-0.65 0.22-0.40 GIF 10.00E-1.20 10.00 1.20 0.020 0.050 8.00 27.00 • • • • • • 1.45-6.00 0.35-0.72 0.22-0.40 • DMIN for internal machining = 65 mm • For cutting speed recommendations and user guide, see pages 676-688 (1) Cutting width tolerance (+/-) (2) Corner radius tolerance (+/-) (3) Cutting depth maximum For tools, see pages: C#-GHDR/L (301) • CGHN-8-10D (315) • GADR/L-8 (314) • GADR/L-JHP (315) • GAFG-R/L-8 (661) • GHDR/L (long pocket) (313) • GHDR/L-JHP (long pocket) (313) • GHFG-R/L-8 (659) • GHFGR/L-8 (659) • GHIR/L (W=7.0-8.3) (398) ±0.025 30 Ref. GIA-K (long pocket) 15° Flat Top Precision Double- CDX 7° 6.4 Ended Inserts with T-Land BW for Machining Cast Iron DAXN CW RE Dimensions Tough 1 Hard Recommended Machining Data ap f turn f groove IC5010 IC428 Designation CW RE CWTOL(1) RETOL(2) BW CDX(3) DAXN(4) (mm) (mm/rev) (mm/rev) GIA 8.00K-0.80 8.00 0.80 0.020 0.050 6.00 25.00 160.0 • • 1.00-4.80 0.36-0.64 0.18-0.38 GIA 8.00K-1.20 8.00 1.20 0.020 0.050 6.00 25.00 160.0 • • 1.45-4.80 0.36-0.70 0.18-0.38 • DMIN for internal machining = 65 mm • For cutting speed recommendations and user guide, see pages 676-688 (1) Cutting width tolerance (+/-) (2) Corner radius tolerance (+/-) (3) Cutting depth maximum (4) Minimum axial grooving diameter For tools, see pages: C#-GHDR/L (301) • CGHN-8-10D (315) • GADR/L-8 (314) • GADR/L-JHP (315) • GAFG-R/L-8 (661) • GHDR/L (long pocket) (313) • GHDR/L-JHP (long pocket) (313) • GHFG-R/L-8 (659) • GHFGR/L-8 (659) • GHIR/L (W=7.0-8.3) (398) 662 ISCAR
