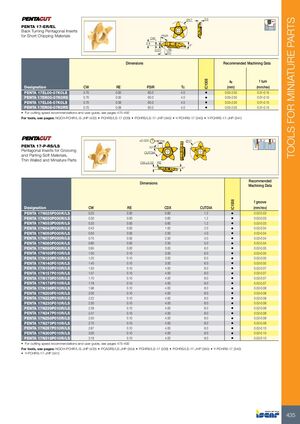

TOOLS FOR MINIATURE PARTS Ø17 3.5 PENTA 17-ER/EL Back Turning Pentagonal Inserts for Short Chipping Materials PSIR CW 2.4 4° 0.2 RE TC Dimensions Recommended Machining Data ap f turn IC1008 Designation CW RE PSIR Tc (mm) (mm/rev) PENTA 17EL00-07K0LS 0.70 0.00 60.0 4.0 • 0.05-2.50 0.01-0.15 PENTA 17ER00-07K0RS 0.70 0.00 60.0 4.0 • 0.05-2.50 0.01-0.15 PENTA 17EL08-07K0LS 0.70 0.08 60.0 4.0 • 0.05-2.50 0.01-0.15 PENTA 17ER08-07K0RS 0.70 0.08 60.0 4.0 • 0.05-2.50 0.01-0.15 • For cutting speed recommendations and user guide, see pages 475-492 For tools, see pages: NQCH-PCHR/L-S-JHP (433) • PCHRS/LS-17 (339) • PCHRS/LS-17-JHP (340) • Y-PCHRS-17 (340) • Y-PCHRS-17-JHP (341) ±0.025 CDX Ø17 PENTA 17-P-RS/LS 10° Pentagonal Inserts for Grooving CUTDIA and Parting Soft Materials, Thin Walled and Miniature Parts CW ±0.02 RE 4° Recommended Dimensions Machining Data f groove IC1008 Designation CW RE CDX CUTDIA (mm/rev) PENTA 17N025P000R/LS 0.25 0.00 0.60 1.2 • 0.02-0.03 PENTA 17N030P000R/LS 0.30 0.00 0.60 1.2 • 0.02-0.03 PENTA 17N033P000R/LS 0.33 0.00 0.60 1.2 • 0.02-0.03 PENTA 17N043P000R/LS 0.43 0.00 1.00 2.0 • 0.02-0.04 PENTA 17N050P000R/LS 0.50 0.00 2.00 4.0 • 0.02-0.04 PENTA 17N075P000R/LS 0.75 0.00 2.50 5.0 • 0.02-0.04 PENTA 17N080P000R/LS 0.80 0.00 2.50 5.0 • 0.02-0.04 PENTA 17N095P000R/LS 0.95 0.00 3.00 6.0 • 0.02-0.05 PENTA 17N100P010R/LS 1.00 0.10 3.00 6.0 • 0.02-0.05 PENTA 17N120P010R/LS 1.20 0.10 3.00 6.0 • 0.02-0.05 PENTA 17N140P010R/LS 1.40 0.10 3.00 6.0 • 0.02-0.05 PENTA 17N150P010R/LS 1.50 0.10 4.00 8.0 • 0.02-0.07 PENTA 17N157P010R/LS 1.57 0.10 4.00 8.0 • 0.02-0.07 PENTA 17N170P010R/LS 1.70 0.10 4.00 8.0 • 0.02-0.07 PENTA 17N178P010R/LS 1.78 0.10 4.00 8.0 • 0.02-0.07 PENTA 17N196P010R/LS 1.96 0.10 4.00 8.0 • 0.02-0.08 PENTA 17N200P010R/LS 2.00 0.10 4.00 8.0 • 0.02-0.08 PENTA 17N222P010R/LS 2.22 0.10 4.00 8.0 • 0.02-0.08 PENTA 17N230P010R/LS 2.30 0.10 4.00 8.0 • 0.02-0.08 PENTA 17N239P010R/LS 2.39 0.10 4.00 8.0 • 0.02-0.08 PENTA 17N247P010R/LS 2.47 0.10 4.00 8.0 • 0.02-0.08 PENTA 17N250P010R/LS 2.50 0.10 4.00 8.0 • 0.02-0.08 PENTA 17N270P010R/LS 2.70 0.10 4.00 8.0 • 0.02-0.09 PENTA 17N287P010R/LS 2.87 0.10 4.00 8.0 • 0.02-0.10 PENTA 17N300P010R/LS 3.00 0.10 4.00 8.0 • 0.02-0.10 PENTA 17N318P010R/LS 3.18 0.10 4.00 8.0 • 0.02-0.10 • For cutting speed recommendations and user guide, see pages 475-492 For tools, see pages: NQCH-PCHR/L-S-JHP (433) • PCADRS/LS-JHP (354) • PCHRS/LS-17 (339) • PCHRS/LS-17-JHP (340) • Y-PCHRS-17 (340) • Y-PCHRS-17-JHP (341) 435
