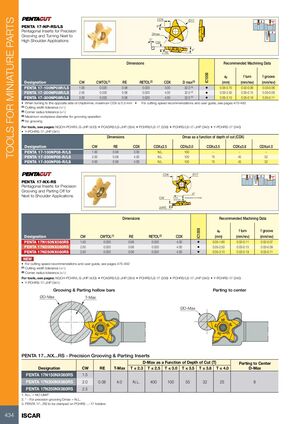

Токарные инструменты Iscar (часть 1) 2026 - страница 436

TOOLS FOR MINIATURE PARTS CDX Ø17 PENTA 17-NP-RS/LS 9° Pentagonal Inserts for Precision Dmax Grooving and Turning Next to High Shoulder Applications 7° CW 4° RE Dimensions Recommended Machining Data IC1008 ap f turn f groove Designation CW CWTOL(1) RE RETOL(2) CDX D max(3) (mm) (mm/rev) (mm/rev) PENTA 17-100NP08R/LS 1.00 0.020 0.08 0.020 3.00 32.0 (4) • 0.05-0.70 0.02-0.06 0.03-0.06 PENTA 17-200NP08R/LS 2.00 0.020 0.08 0.020 4.00 32.0 (4) • 0.05-2.50 0.05-0.15 0.05-0.09 PENTA 17-300NP08R/LS 3.00 0.020 0.08 0.020 4.00 32.0 (4) • 0.05-3.10 0.05-0.19 0.05-0.11 • When turning to the opposite side of chipformer, maximum CDX is 0.5 mm • For cutting speed recommendations and user guide, see pages 475-492 (1) Cutting width tolerance (+/-) (2) Corner radius tolerance (+/-) (3) Maximum workpiece diameter for grooving operation (4) for grooving For tools, see pages: NQCH-PCHR/L-S-JHP (433) • PCADRS/LS-JHP (354) • PCHRS/LS-17 (339) • PCHRS/LS-17-JHP (340) • Y-PCHRS-17 (340) • Y-PCHRS-17-JHP (341) Dimensions Dmax as a function of depth of cut (CDX) Designation CW RE CDX CDX≤2.5 CDX≤3.0 CDX≤3.5 CDX≤3.8 CDX≤4.0 PENTA 17-100NP08-R/LS 1�00 0�08 3�00 N�L� 100 - - - PENTA 17-200NP08-R/LS 2�00 0�08 4�00 N�L� 100 75 45 32 PENTA 17-300NP08-R/LS 3�00 0�08 4�00 N�L� 100 75 45 32 CDX Ø17 PENTA 17-NX-RS Pentagonal Inserts for Precision Grooving and Parting Off for 4° Next to Shoulder Applications CW Feed Orientation on holder direction 2xRE Dimensions Recommended Machining Data ap f turn f groove IC1008 Designation CW CWTOL(1) RE RETOL(2) CDX (mm) (mm/rev) (mm/rev) PENTA 17N150NX080RS 1.50 0.020 0.08 0.020 4.00 • 0.05-1.80 0.02-0.11 0.02-0.07 PENTA 17N200NX080RS 2.00 0.020 0.08 0.020 4.00 • 0.05-2.50 0.03-0.15 0.03-0.09 PENTA 17N250NX080RS 2.50 0.020 0.08 0.020 4.00 • 0.05-3.10 0.03-0.19 0.03-0.11 NEW • For cutting speed recommendations and user guide, see pages 475-492 (1) Cutting width tolerance (+/-) (2) Corner radius tolerance (+/-) For tools, see pages: NQCH-PCHR/L-S-JHP (433) • PCADRS/LS-JHP (354) • PCHRS/LS-17 (339) • PCHRS/LS-17-JHP (340) • Y-PCHRS-17 (340) • Y-PCHRS-17-JHP (341) Grooving & Parting hollow bars Parting to center ØD-Max T-Max ØD-Max PENTA 17...NX...RS - Precision Grooving & Parting Inserts D-Max as a Function of Depth of Cut (T) Parting to Center Designation CW RE T-Max T ≤ 2.3 T ≤ 2.5 T ≤ 3.0 T ≤ 3.5 T ≤ 3.8 T ≤ 4.0 D-Max PENTA 17N150NX080RS 1�5 PENTA 17N200NX080RS 2�0 0�08 4�0 N�L� 400 100 55 32 25 8 PENTA 17N250NX080RS 2�5 1� N�L� = NO LIMIT 2� * - For precision grooving Dmax = N�L� 3� PENTA 17���RS to be clamped on PCHRS ���-17 holders 434 ISCAR
