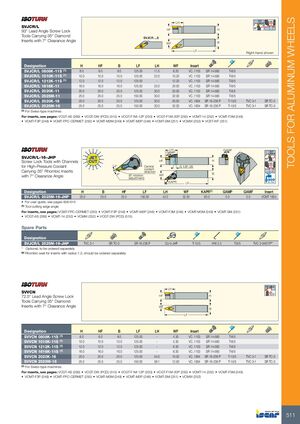

Токарные инструменты Iscar (часть 1) 2026 - страница 513

TOOLS FOR ALUMINUM WHEELS 50° 105° LH MAX SVJCR/L 93° HF H 93° Lead Angle Screw Lock Tools Carrying 35° Diamond SVJCR ...S Inserts with 7° Clearance Angle B WF LF Right-hand shown Designation H HF B LF LH WF Insert SVJCR/L 0808K-11S (1) 8.0 8.0 8.0 125.00 11.5 8.20 VC..1103 SR 14-560 T-8/5 SVJCR/L 1010K-11S (1) 10.0 10.0 10.0 125.00 22.0 10.20 VC..1103 SR 14-560 T-8/5 SVJCR/L 1212K-11S (1) 12.0 12.0 12.0 125.00 - 12.20 VC..1103 SR 14-560 T-8/5 SVJCR/L 1616K-11 16.0 16.0 16.0 125.00 25.0 20.00 VC..1103 SR 14-560 T-8/5 SVJCR/L 2020K-11 20.0 20.0 20.0 125.00 30.0 25.00 VC..1103 SR 14-560 T-8/5 SVJCR/L 2525M-11 25.0 25.0 25.0 150.00 30.0 32.00 VC..1103 SR 14-560 T-8/5 SVJCR/L 2020K-16 20.0 20.0 20.0 125.00 30.0 25.00 VC..1604 SR 16-236 P T-15/5 TVC 3-1 SR TC-3 SVJCR/L 2525M-16 25.0 25.0 25.0 150.00 30.0 32.00 VC..1604 SR 16-236 P T-15/5 TVC 3-1 SR TC-3 (1) For Swiss-type machines For inserts, see pages: VCGT-AS (269) • VCGT-DW (PCD) (515) • VCGT-F1M-12P (250) • VCGT-F1M-20P (250) • VCMT-14 (252) • VCMT-F3M (249) • VCMT-F3P (248) • VCMT-FPC-CERMET (250) • VCMT-M3M (249) • VCMT-M3P (248) • VCMT-SM (251) • VCMW (252) • VCET-WF (251) LH GAMF GAMP 50° MAX SVJCR/L-16-JHP 93° Screw Lock Tools with Channels HF H 105° for High-Pressure Coolant 4° Central G 1/8"-28 coolant Carrying 35° Rhombic Inserts direction 4° WF B with 7° Clearance Angle (8° rotation adjustment) KAPR LF Bar Max Designation H B HF LF LH WF KAPR(1) GAMP GAMF Insert SVJCR/L 2525M-16-JHP 25.0 25.0 25.0 150.00 42.0 32.00 93.0 0.0 0.0 VCMT 1604 • For user guide, see pages 606-615 (1) Tool cutting edge angle For inserts, see pages: VCMT-FPC-CERMET (250) • VCMT-F3P (248) • VCMT-M3P (248) • VCMT-F3M (249) • VCMT-M3M (249) • VCMT-SM (251) • VCGT-AS (269) • VCMT-14 (252) • VCMW (252) • VCGT-DW (PCD) (515) Spare Parts Designation SVJCR/L 2525M-16-JHP TVC 3-1 SR TC-3 SR 16-236 P CU-V-JHP T-15/5 HW 2.5 T-8/5 TVC 3-04675(a)* * Optional, to be ordered separately (a) Rhombic seat for inserts with radius 1.2, should be ordered separately 70°MAX LH SVVCN 72.5º 72.5° Lead Angle Screw Lock HF H Tools Carrying 35° Diamond Inserts with 7° Clearance Angle WF B LF Designation H HF B LF LH WF Insert SVVCN 0808K-11S (1) 8.0 8.0 8.0 125.00 - 4.30 VC..1103 SR 14-560 T-8/5 SVVCN 1010K-11S (1) 10.0 10.0 10.0 125.00 - 5.30 VC..1103 SR 14-560 T-8/5 SVVCN 1212K-11S (1) 12.0 12.0 12.0 125.00 - 6.30 VC..1103 SR 14-560 T-8/5 SVVCN 1616K-11S (1) 16.0 16.0 16.0 125.00 - 8.30 VC..1103 SR 14-560 T-8/5 SVVCN 2020K-16 20.0 20.0 20.0 125.00 34.0 10.00 VC..1604 SR 16-236 P T-15/5 TVC 3-1 SR TC-3 SVVCN 2525M-16 25.0 25.0 25.0 150.00 38.1 12.50 VC..1604 SR 16-236 P T-15/5 TVC 3-1 SR TC-3 (1) For Swiss-type machines For inserts, see pages: VCGT-AS (269) • VCGT-DW (PCD) (515) • VCGT-F1M-12P (250) • VCGT-F1M-20P (250) • VCMT-14 (252) • VCMT-F3M (249) • VCMT-F3P (248) • VCMT-FPC-CERMET (250) • VCMT-M3M (249) • VCMT-M3P (248) • VCMT-SM (251) • VCMW (252) 511
