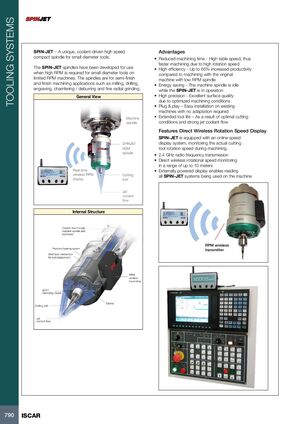

TOOLING SYSTEMS SPIN-JET – A unique, coolant-driven high speed Advantages compact spindle for small diameter tools. • Reduced machining time - High table speed, thus faster machining due to high rotation speed The SPIN-JET spindles have been developed for use • High efficiency - Up to 65% increased productivity when high RPM is required for small diameter tools on compared to machining with the original limited RPM machines. The spindles are for semi-finish machine with low RPM spindle and finish machining applications such as milling, drilling, • Energy saving - The machine spindle is idle engraving, chamfering / deburring and fine radial grinding. while the SPIN-JET is in operation General View • High precision - Excellent surface quality due to optimized machining conditions • Plug & play – Easy installation on existing machines with no adaptation required • Extended tool life – As a result of optimal cutting conditions and strong jet coolant flow Features Direct Wireless Rotation Speed Display SPIN-JET is equipped with an online speed display system, monitoring the actual cutting tool rotation speed during machining. • 2.4 GHz radio frequency transmission • Direct wireless rotational speed monitoring in a range of up to 10 meters • Externally powered display enables reading all SPIN-JET systems being used on the machine Internal Structure RPM wireless transmitter 790 ISCAR
