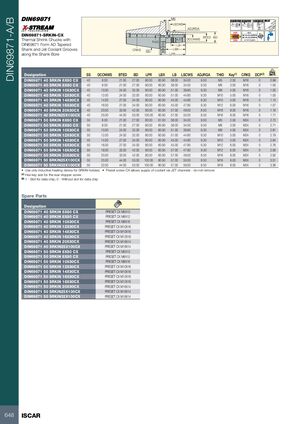

M6 DIN69871-A/B A 0.003 A AT3 Taper 50-52 HRc √N5 LSCWS ADJRGA G2.5 DIN69871-SRKIN-CX BTED BD SK 40=25,000RPM SK 50=20,000RPM Thermal Shrink Chucks with THID 4.5° DCONWS or U<1.0 gmm DIN69871 Form AD Tapered LB Shank and Jet Coolant Grooves CRKS SS LBX along the Shank Bore LPR kg Designation SS DCONWS BTED BD LPR LBX LB LSCWS ADJRGA THID Key(1) CRKS DCP(2) DIN69871 40 SRKIN 6X80 CX 40 6.00 21.00 27.00 80.00 60.90 38.00 34.00 9.50 M5 2.50 M16 0 0.99 DIN69871 40 SRKIN 8X80 CX 40 8.00 21.00 27.00 80.00 60.90 38.00 34.00 9.50 M6 3.00 M16 0 1.00 DIN69871 40 SRKIN 10X80CX 40 10.00 24.00 32.00 80.00 60.90 51.00 39.80 9.30 M8 4.00 M16 0 1.05 DIN69871 40 SRKIN 12X80CX 40 12.00 24.00 32.00 80.00 60.90 51.00 44.80 9.30 M10 5.00 M16 0 1.05 DIN69871 40 SRKIN 14X80CX 40 14.00 27.00 34.00 80.00 60.90 45.00 44.80 9.30 M10 5.00 M16 0 1.15 DIN69871 40 SRKIN 16X80CX 40 16.00 27.00 34.00 80.00 60.90 45.00 47.80 9.30 M12 6.00 M16 0 1.07 DIN69871 40 SRKIN 20X80CX 40 20.00 33.00 42.00 80.00 60.90 57.00 49.00 8.50 M16 8.00 M16 0 1.16 DIN69871 40 SRKIN25X100CX 40 25.00 44.00 53.00 100.00 80.90 57.00 55.00 8.50 M16 8.00 M16 0 1.71 DIN69871 50 SRKIN 6X80 CX 50 6.00 21.00 27.00 80.00 61.00 38.00 34.00 9.50 M5 2.50 M24 0 2.72 DIN69871 50 SRKIN 8X80 CX 50 8.00 21.00 27.00 80.00 60.90 38.00 34.00 9.50 M6 3.00 M24 0 2.71 DIN69871 50 SRKIN 10X80CX 50 10.00 24.00 32.00 80.00 60.90 51.00 39.80 9.30 M8 4.00 M24 0 2.81 DIN69871 50 SRKIN 12X80CX 50 12.00 24.00 32.00 80.00 60.90 51.00 44.80 9.30 M10 5.00 M24 0 2.79 DIN69871 50 SRKIN 14X80CX 50 14.00 27.00 34.00 80.00 60.90 45.00 44.80 9.30 M10 5.00 M24 0 2.84 DIN69871 50 SRKIN 16X80CX 50 16.00 27.00 34.00 80.00 60.90 45.00 47.80 9.30 M12 6.00 M24 0 2.76 DIN69871 50 SRKIN 18X80CX 50 18.00 33.00 42.00 80.00 60.90 57.00 47.80 9.30 M12 6.00 M24 0 2.90 DIN69871 50 SRKIN 20X80CX 50 20.00 33.00 42.00 80.00 60.90 57.00 49.00 8.50 M16 8.00 M24 0 2.92 DIN69871 50 SRKIN25X100CX 50 25.00 44.00 53.00 100.00 80.90 57.00 55.00 8.50 M16 8.00 M24 0 3.51 DIN69871 50 SRKIN32X100CX 50 32.00 44.00 53.00 100.00 80.90 57.00 59.00 8.50 M16 8.00 M24 0 3.36 • Use only inductive heating device for SRKIN holders • Preset screw CX allows supply of coolant via JET channels - do not remove (1) Hex key size for the rear stopper screw (2) 1 - Slot for data chip, 0 - Without slot for data chip Spare Parts Designation DIN69871 40 SRKIN 6X80 CX PRESET CX M5X13 DIN69871 40 SRKIN 8X80 CX PRESET CX M6X12 DIN69871 40 SRKIN 10X80CX PRESET CX M8X16 DIN69871 40 SRKIN 12X80CX PRESET CX M10X16 DIN69871 40 SRKIN 14X80CX PRESET CX M10X16 DIN69871 40 SRKIN 16X80CX PRESET CX M12X16 DIN69871 40 SRKIN 20X80CX PRESET CX M16X14 DIN69871 40 SRKIN25X100CX PRESET CX M16X14 DIN69871 50 SRKIN 6X80 CX PRESET CX M5X13 DIN69871 50 SRKIN 8X80 CX PRESET CX M6X12 DIN69871 50 SRKIN 10X80CX PRESET CX M8X16 DIN69871 50 SRKIN 12X80CX PRESET CX M10X16 DIN69871 50 SRKIN 14X80CX PRESET CX M10X16 DIN69871 50 SRKIN 16X80CX PRESET CX M12X16 DIN69871 50 SRKIN 18X80CX PRESET CX M12X16 DIN69871 50 SRKIN 20X80CX PRESET CX M16X14 DIN69871 50 SRKIN25X100CX PRESET CX M16X14 DIN69871 50 SRKIN32X100CX PRESET CX M16X14 648 ISCAR
