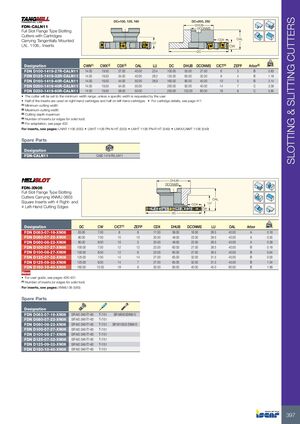

Фрезерные инструменты Iscar 2026 - страница 399

SLOTTING & SLITTING CUTTERS DC=100, 125, 160 DC=200, 250 DHUB FDN-CALN11 DCONMS Full Slot Flange Type Slotting Cutters with Cartridges CDX OAL Carrying Tangentially Mounted LU LN.. 1106.. Inserts CW DC kg Designation CWN(1) CWX(2) CDX(3) OAL LU DC DHUB DCONMS CICT(4) ZEFP Arbor(5) FDN D100-1419-27R-CALN11 14.00 19.50 27.00 40.00 23.4 100.00 55.00 27.00 6 3 B 0.83 FDN D125-1419-32R-CALN11 14.00 19.50 34.00 40.00 28.2 125.00 65.00 32.00 8 4 B 1.18 FDN D160-1419-40R-CALN11 14.00 19.50 44.00 50.00 28.9 160.00 80.00 40.00 10 5 B 2.14 FDN D200-1419-40R-CALN11 14.00 19.50 54.00 50.00 - 200.00 92.00 40.00 14 7 C 3.39 FDN D250-1419-60R-CALN11 14.00 19.50 58.00 50.00 - 250.00 132.00 60.00 16 8 C 5.85 • The cutter will be set to the minimum width range, unless a specific width is requested by the user • Half of the inserts are used on right-hand cartridges and half on left-hand cartridges • For cartridge details, see page 411 (1) Minimum cutting width (2) Maximum cutting width (3) Cutting depth maximum (4) Number of inserts (or edges for solid tool) (5) For adaptation, see page 432 For inserts, see pages: LNAR 1106 (550) • LNHT 1106 PN-N HT (550) • LNHT 1106 PN-R HT (549) • LNKX/LNMT 1106 (549) Spare Parts Designation FDN-CALN11 CA90 1419-R/L-LN11 DHUB DCONMS FDN-XN06 Full Slot Flange Type Slotting Cutters Carrying XNMU 0603 OAL Square Inserts with 4 Right- and LU CDX 4 Left-Hand Cutting Edges CW DC kg Designation DC CW CICT(1) ZEFP CDX DHUB DCONMS LU OAL Arbor FDN D063-07-16-XN06 63.00 7.00 8 8 17.00 38.00 16.00 28.5 40.00 A 0.18 FDN D080-07-22-XN06 80.00 7.00 10 10 20.00 48.00 22.00 28.5 40.00 A 0.55 FDN D080-08-22-XN06 80.00 8.00 10 5 20.00 48.00 22.00 28.5 40.00 A 0.39 FDN D100-07-27-XN06 100.00 7.00 12 12 23.00 60.00 27.00 28.5 40.00 B 0.18 FDN D100-08-27-XN06 100.00 8.00 12 6 23.00 60.00 27.00 28.5 40.00 B 0.64 FDN D125-07-32-XN06 125.00 7.00 14 14 27.00 65.00 32.00 31.5 45.00 B 0.00 FDN D125-09-32-XN06 125.00 9.00 14 7 27.00 65.00 32.00 31.5 45.00 B 1.04 FDN D160-10-40-XN06 160.00 10.00 18 9 30.00 80.00 40.00 45.0 60.00 B 1.99 New • For user guide, see pages 426-431 (1) Number of inserts (or edges for solid tool) For inserts, see pages: XNMU 06 (585) Spare Parts Designation FDN D063-07-16-XN06 SR M2.5X6-T7-60 T-7/51 SR M8X25DIN912 FDN D080-07-22-XN06 SR M2.5X6-T7-60 T-7/51 FDN D080-08-22-XN06 SR M2.5X6-T7-60 T-7/51 SR M10X25 DIN912 FDN D100-07-27-XN06 SR M2.5X6-T7-60 T-7/51 FDN D100-08-27-XN06 SR M2.5X6-T7-60 T-7/51 FDN D125-07-32-XN06 SR M2.5X6-T7-60 T-7/51 FDN D125-09-32-XN06 SR M2.5X6-T7-60 T-7/51 FDN D160-10-40-XN06 SR M2.5X6-T7-60 T-7/51 397
