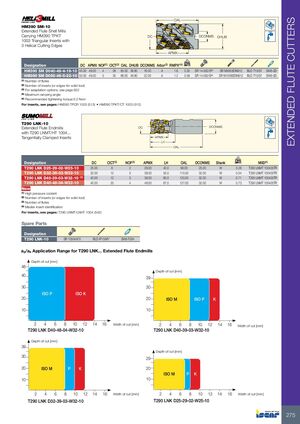

EXTENDED FLUTE CUTTERS OAL HM390 SM-10 Extended Flute Shell Mills Carrying HM390 TPKT DC DCONMS DHUB 1003 Triangular Inserts with 3 Helical Cutting Edges APMX Designation DC APMX NOF(1) CICT(2) OAL DHUB DCONMS Arbor(3) RMPX°(4) kg HM390 SM D040-49-4-16-10 40.00 49.00 4 28 65.00 38.80 16.00 A 1.6 0.30 SR 14-562/S(a) SR M8X55DIN912 BLD T10/S7 SW6-SD HM390 SM D050-49-5-22-10 50.00 49.00 5 35 66.00 48.80 22.00 A 1.2 0.58 SR 14-562/S(a) SR M10X60DIN912 BLD T10/S7 SW6-SD (1) Number of flutes (2) Number of inserts (or edges for solid tool) (3) For adaptation options, see page 622 (4) Maximum ramping angle (a) Recommended tightening torque:3.2 Nxm For inserts, see pages: HM390 TPCR 1003 (513) • HM390 TPKT/CT 1003 (512) T290 LNK-10 Extended Flute Endmills DC DCONMS with T290 LNMT/HT 1004... Tangentially Clamped Inserts APMX LH OAL kg Designation DC CICT(2) NOF(3) APMX LH OAL DCONMS Shank MIID(4) T290 LNK D25-29-02-W25-10 25.00 6 2 29.00 40.0 96.00 25.00 W 0.26 T290 LNMT 100405TR T290 LNK D32-39-03-W32-10 32.00 12 3 39.00 55.0 115.00 32.00 W 0.54 T290 LNMT 100405TR T290 LNK D40-39-03-W32-10 (1) 40.00 12 3 39.00 60.0 120.00 32.00 W 0.71 T290 LNMT 100405TR T290 LNK D40-48-04-W32-10 40.00 20 4 48.00 67.0 127.00 32.00 W 0.73 T290 LNMT 100405TR New (1) High pressure coolant (2) Number of inserts (or edges for solid tool) (3) Number of flutes (4) Master insert identification For inserts, see pages: T290 LNMT/LNHT 1004 (542) Spare Parts Designation T290 LNK-10 SR 10504970 BLD IP15/M7 SW6-T-SH ap/ae Application Range for T290 LNK... Extended Flute Endmills Depth of cut [mm] 48 Depth of cut [mm] 40 39 30 30 ISO P ISO K 20 20 ISO M ISO P K 10 10 2 4 6 8 10 12 14 16 Width of cut [mm] 2 4 6 8 10 12 14 16 Width of cut [mm] T290 LNK D40-48-04-W32-10 T290 LNK D40-39-03-W32-10 Depth of cut [mm] 39 Depth of cut [mm] 30 29 20 ISO M P K 20 ISO M P K 10 10 2 4 6 8 10 12 14 16 Width of cut [mm] 2 4 6 8 10 12 14 16 Width of cut [mm] T290 LNK D32-39-03-W32-10 T290 LNK D25-29-02-W25-10 275
