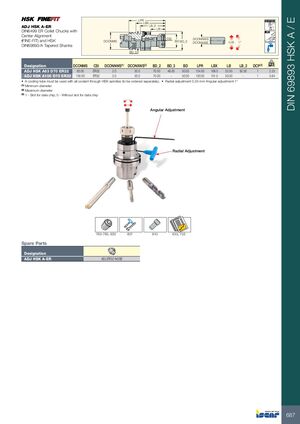

DIN 69893 HSK A / E LPR 58-60 HRc LBX ADJ HSK A-ER LB_2 LB DIN6499 ER Collet Chucks with √N5 Center Alignment CSI DCONNWS (FINE-FIT) ‘ and HSK DCONMS BD BD_2 DCONXWS 0.05 1° DIN69893/A Tapered Shanks BD_3 kg Designation DCONMS CSI DCONNWS(1) DCONXWS(2) BD_2 BD_3 BD LPR LBX LB LB_2 DCP(3) ADJ HSK A63 D70 ER32 63.00 ER32 2.0 20.0 70.00 46.00 50.00 134.50 108.5 52.50 92.50 1 2.25 ADJ HSK A100 D70 ER32 100.00 ER32 2.0 20.0 70.00 - 50.00 130.00 101.0 53.00 - 1 3.64 • A cooling tube must be used with all coolant through HSK spindles (to be ordered separately). • Radial adjustment 0.05 mm Angular adjustment 1° (1) Minimum diameter (2) Maximum diameter (3) 1 - Slot for data chip, 0 - Without slot for data chip Angular Adjustment Radial Adjustment 763-765, 635 807 810 633, 755 Spare Parts Designation ADJ HSK A-ER ADJ ER32 NOSE 687
