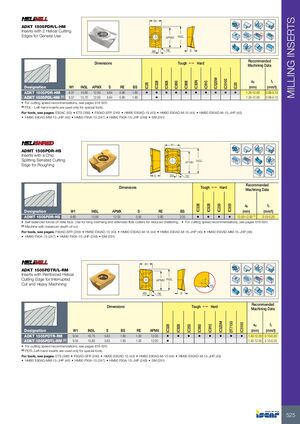

MILLING INSERTS W1 ADKT 1505PDR/L-HM Inserts with 2 Helical Cutting Rd° Edges for General Use APMX INSL BS RE S Recommended Dimensions Tough 1 Hard Machining Data IC520M ap fz IC5100 IC30N IC328 IC928 IC950 IC908 IC910 IC28 IC20 Designation W1 INSL APMX S RE BS (mm) (mm/t) ADKT 1505PDR-HM 9.57 15.65 12.00 5.64 0.80 1.60 • • • • • • • • • • 1.20-12.00 0.08-0.15 ADKT 1505PDL-HM (1) 9.57 15.70 12.00 5.64 0.80 1.60 • 1.20-12.00 0.08-0.15 • For cutting speed recommendations, see pages 616-620 (1) PDL - Left-hand inserts are used only for special tools. For tools, see pages: E90AC (50) • ETS (389) • F90AD-SFR (249) • HM90 E90AD-15 (43) • HM90 E90AD-M-15 (44) • HM90 E90AD-M-15-JHP (45) • HM90 E90AD-MM-15-JHP (46) • HM90 F90A-15 (247) • HM90 F90A-15-JHP (248) • SM (291) W1 ADMT 1505PDR-HS Inserts with a Chip Rd° Splitting Serrated Cutting APMX INSL Edge for Roughing S BS RE Recommended Dimensions Tough 1 Hard Machining Data ap fz IC328 IC928 IC250 IC950 Designation W1 INSL APMX S RE BS (mm) (mm/t) ADMT 1505PDR-HS 9.60 15.85 12.00 5.92 0.80 2.00 • • • • 12.00-12.00 (1) 0.10-0.20 • Self-balanced forces on rake face. Use for long overhang and extended flute cutters for reduced chattering. • For cutting speed recommendations, see pages 616-620 (1) Machine with maximum depth of cut For tools, see pages: F90AD-SFR (249) • HM90 E90AD-15 (43) • HM90 E90AD-M-15 (44) • HM90 E90AD-M-15-JHP (45) • HM90 E90AD-MM-15-JHP (46) • HM90 F90A-15 (247) • HM90 F90A-15-JHP (248) • SM (291) W1 ADKT 1505PDTR/L-RM Inserts with Reinforced Helical Rd° Cutting Edge for Interrupted APMX INSL Cut and Heavy Machining RE BS RE S Recommended Dimensions Tough 1 Hard Machining Data IC520M DT7150 ap fz IC5100 IC328 IC928 IC250 IC950 IC910 Designation W1 INSL S BS RE APMX (mm) (mm/t) ADKT 1505PDTR-RM 9.54 15.75 5.63 1.60 1.00 12.00 • • • • • • • • 1.40-12.00 0.10-0.20 ADKT 1505PDTL-RM (1) 9.54 15.80 5.63 1.60 1.00 12.00 • 1.40-12.00 0.10-0.20 • For cutting speed recommendations, see pages 616-620 (1) PDTL-Left-hand inserts are used only for special tools. For tools, see pages: ETS (389) • F90AD-SFR (249) • HM90 E90AD-15 (43) • HM90 E90AD-M-15 (44) • HM90 E90AD-M-15-JHP (45) • HM90 E90AD-MM-15-JHP (46) • HM90 F90A-15 (247) • HM90 F90A-15-JHP (248) • SM (291) 525
