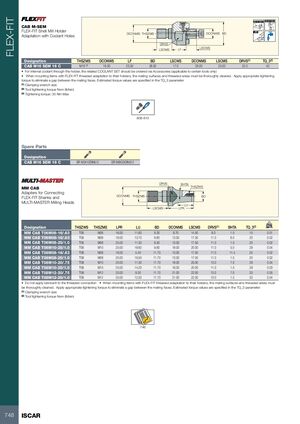

FLEX-FIT A 0.005 A 58-60 HRc CAB M-SEM FLEX-FIT Shell Mill Holder √N5 DCONMS THSZMS DCONWS BD Adaptation with Coolant Holes DRVS LF LSCWS LSCMS Designation THSZMS DCONWS LF BD LSCWS DCONMS LSCMS DRVS(1) TQ_3(2) CAB M16 SEM 16 C M16 (3) 16.00 23.00 38.00 17.0 29.00 25.00 32.0 40 • For internal coolant through the holder, the related COOLANT SET should be ordered via Accessories (applicable to certain tools only) • When mounting items with FLEX-FIT threaded adaptation to their holders, the mating surfaces and threaded areas must be thoroughly cleaned. Apply appropriate tightening torque to eliminate a gap between the mating faces. Estimated torque values are specified in the TQ_3 parameter (1) Clamping wrench size (2) Tool tightening torque Nxm (lbfxin) (3) Tightening torque: 30 Nm Max 808-810 Spare Parts Designation CAB M16 SEM 16 C SR M3X10DIN912 SR M8X25DIN912 DRVS BHTA THSZWS MM CAB Adapters for Connecting DCONMS THSZMS BD FLEX-FIT Shanks and MULTI-MASTER Milling Heads LU LSCMS LPR kg Designation THSZWS THSZMS LPR LU BD DCONMS LSCMS DRVS(1) BHTA TQ_3(2) MM CAB T06M06-16/.63 T06 M06 16.00 11.60 9.30 9.70 14.50 8.0 1.5 15 0.01 MM CAB T06M08-16/.63 T06 M08 16.00 13.70 9.60 13.00 17.50 11.0 6.0 20 0.02 MM CAB T06M08-25/1.0 T06 M08 25.00 11.30 9.30 13.00 17.50 11.0 1.5 20 0.02 MM CAB T06M10-25/1.0 T06 M10 25.00 16.60 9.60 18.00 20.00 11.0 5.0 29 0.04 MM CAB T08M08-16/.63 T08 M08 16.00 5.40 11.70 13.00 17.50 11.0 11.4 20 0.02 MM CAB T08M08-25/1.0 T08 M08 25.00 19.50 11.70 13.00 17.50 11.0 1.5 20 0.02 MM CAB T08M10-20/.75 T08 M10 20.00 11.30 11.70 18.00 20.00 13.0 7.0 29 0.04 MM CAB T08M10-25/1.0 T08 M10 25.00 14.20 11.70 18.00 20.00 11.0 1.5 29 0.03 MM CAB T08M12-20/.75 T08 M12 20.00 9.30 11.70 21.00 22.00 13.0 7.0 33 0.05 MM CAB T08M12-25/1.0 T08 M12 25.00 12.50 11.70 21.00 22.00 13.0 1.5 33 0.04 • Do not apply lubricant to the threaded connection • When mounting items with FLEX-FIT threaded adaptation to their holders, the mating surfaces and threaded areas must be thoroughly cleaned. Apply appropriate tightening torque to eliminate a gap between the mating faces. Estimated torque values are specified in the TQ_3 parameter (1) Clamping wrench size (2) Tool tightening torque Nxm (lbfxin) 746 748 ISCAR
