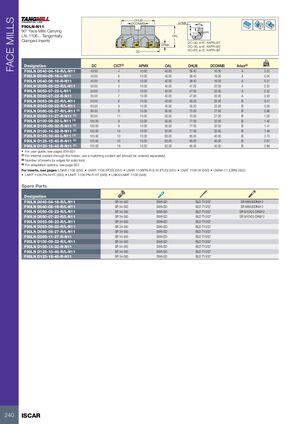

FACE MILLS DHUB DCONMS APMX a° F90LN-N11 90° Face Mills Carrying 5.0 KAPR LN..1106... Tangentially OAL Clamped Inserts DC=40, a=6˚, KAPR=91˚ APMX DC=50, a=6˚, KAPR=90˚ DC DC≥63, a=5˚, KAPR=90˚ kg Designation DC CICT(2) APMX OAL DHUB DCONMS Arbor(3) F90LN D040-04-16-R/L-N11 40.00 4 10.00 40.00 38.40 16.00 A 0.22 F90LN D040-06-16-L-N11 40.00 6 10.00 40.00 38.40 16.00 A 0.04 F90LN D040-06-16-R-N11 40.00 6 10.00 40.00 38.40 16.00 A 0.21 F90LN D050-05-22-R/L-N11 50.00 5 10.00 40.00 47.00 22.00 A 0.32 F90LN D050-07-22-L-N11 50.00 7 10.00 40.00 47.00 22.00 A 0.32 F90LN D050-07-22-R-N11 50.00 7 10.00 40.00 47.00 22.00 A 0.33 F90LN D063-06-22-R/L-N11 63.00 6 10.00 40.00 59.20 22.00 B 0.47 F90LN D063-09-22-R/L-N11 63.00 9 10.00 40.00 59.20 22.00 B 0.50 F90LN D080-08-27-R/L-N11 (1) 80.00 8 10.00 50.00 70.00 27.00 B 0.98 F90LN D080-11-27-R-N11 (1) 80.00 11 10.00 50.00 70.00 27.00 B 1.02 F90LN D100-09-32-L-N11 (1) 100.00 9 10.00 50.00 77.00 32.00 B 1.40 F90LN D100-09-32-R-N11 (1) 100.00 9 10.00 50.00 77.00 32.00 B 1.41 F90LN D100-14-32-R-N11 (1) 100.00 14 10.00 50.00 77.00 32.00 B 1.48 F90LN D125-10-40-L-N11 (1) 125.00 10 10.00 63.00 95.00 40.00 B 2.73 F90LN D125-10-40-R-N11 (1) 125.00 10 10.00 63.00 95.00 40.00 B 2.67 F90LN D125-18-40-R-N11 (1) 125.00 18 10.00 63.00 95.00 40.00 B 2.88 • For user guide, see pages 616-621 (1) For internal coolant through the holder, use a matching coolant set (should be ordered separately) (2) Number of inserts (or edges for solid tool) (3) For adaptation options, see page 622 For inserts, see pages: LNAR 1106 (550) • LNAR 1106 (PCD) (551) • LNAR 1106PN-R-S-W (PCD) (551) • LNAT 1106-W (550) • LNAW-11 (CBN) (552) • LNHT 1106 PN-N HT (550) • LNHT 1106 PN-R HT (549) • LNKX/LNMT 1106 (549) Spare Parts Designation F90LN D040-04-16-R/L-N11 SR 34-550 SW6-SD BLD T10/S7 SR M8X30DIN912 F90LN D040-06-16-R/L-N11 SR 34-550 SW6-SD BLD T10/S7 SR M8X30DIN912 F90LN D050-05-22-R/L-N11 SR 34-550 SW6-SD BLD T10/S7 SR M10X25 DIN912 F90LN D050-07-22-R/L-N11 SR 34-550 SW6-SD BLD T10/S7 SR M10X25 DIN912 F90LN D063-06-22-R/L-N11 SR 34-550 SW6-SD BLD T10/S7 F90LN D063-09-22-R/L-N11 SR 34-550 SW6-SD BLD T10/S7 F90LN D080-08-27-R/L-N11 SR 34-550 SW6-SD BLD T10/S7 F90LN D080-11-27-R-N11 SR 34-550 SW6-SD BLD T10/S7 F90LN D100-09-32-R/L-N11 SR 34-550 SW6-SD BLD T10/S7 F90LN D100-14-32-R-N11 SR 34-550 SW6-SD BLD T10/S7 F90LN D125-10-40-R/L-N11 SR 34-550 SW6-SD BLD T10/S7 F90LN D125-18-40-R-N11 SR 34-550 SW6-SD BLD T10/S7 240 ISCAR
