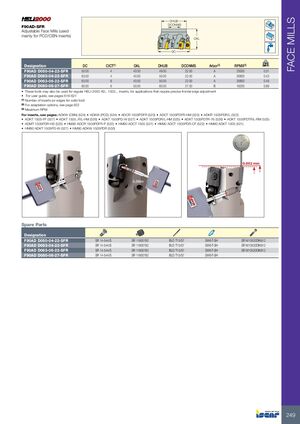

FACE MILLS DHUB DCONMS F90AD-SFR Adjustable Face Mills (used mainly for PCD/CBN inserts) OAL DC kg Designation DC CICT(1) OAL DHUB DCONMS Arbor(2) RPMX(3) F90AD D050-04-22-SFR 50.00 4 40.00 49.00 22.00 A 23000 0.31 F90AD D063-04-22-SFR 63.00 4 40.00 50.00 22.00 A 20600 0.43 F90AD D063-06-22-SFR 63.00 6 40.00 50.00 22.00 A 20600 0.49 F90AD D080-06-27-SFR 80.00 6 50.00 60.00 27.00 B 18200 0.89 • These tools may also be used for regular HELI-2000 AD.. 1505... inserts, for applications that require precise frontal edge adjustment • For user guide, see pages 616-621 (1) Number of inserts (or edges for solid tool) (2) For adaptation options, see page 622 (3) Maximum RPM For inserts, see pages: ADKW (CBN) (524) • ADKW (PCD) (524) • ADCR 1505PDFR (523) • ADCT 1505PDFR-HM (523) • ADKR 1505PDR/L (523) • ADKT 1505-FF (527) • ADKT 1505..R/L-HM (526) • ADKT 1505PD-W (527) • ADKT 1505PDR/L-HM (525) • ADKT 1505PDTR-76 (526) • ADKT 1505PDTR/L-RM (525) • ADMT 1505PDR-HS (525) • HM90 ADCR 1505PDFR-P (522) • HM90 ADCT 1505 (521) • HM90 ADCT 1505PDR-CF (522) • HM90 ADKT 1505 (521) • HM90 ADKT 1505PD-W (527) • HM90 ADKW 1505PDR (530) 0.002 mm Spare Parts Designation F90AD D050-04-22-SFR SR 14-544/S SR 11800782 BLD T15/S7 SW6-T-SH SR M10X20DIN912 F90AD D063-04-22-SFR SR 14-544/S SR 11800782 BLD T15/S7 SW6-T-SH SR M10X20DIN912 F90AD D063-06-22-SFR SR 14-544/S SR 11800782 BLD T15/S7 SW6-T-SH SR M10X20DIN912 F90AD D080-06-27-SFR SR 14-544/S SR 11800782 BLD T15/S7 SW6-T-SH 249
