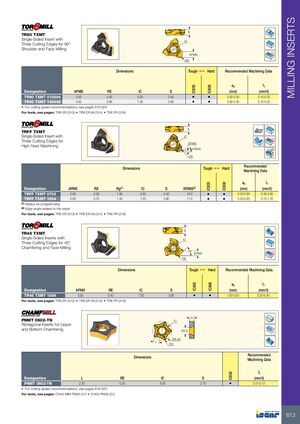

MILLING INSERTS S TR90 TXMT Single-Sided Insert with IC Three Cutting Edges for 90° Shoulder and Face Milling Rd° APMX RE Dimensions Tough 1 Hard Recommended Machining Data ap fz IC830 IC808 Designation APMX RE IC S (mm) (mm/t) TR90 TXMT 070204 2.50 0.40 5.30 2.40 • • 0.50-2.50 0.10-0.20 TR90 TXMT 100408 4.00 0.80 7.30 3.90 • • 0.90-4.00 0.10-0.20 • For cutting speed recommendations, see pages 616-620 For tools, see pages: TR6 ER (313) • TR6 ER-M (314) • TR6 FR (316) S TRFF TXMT Single-Sided Insert with IC Rd° Three Cutting Edges for APMX High Feed Machining KRINS RE Recommended Dimensions Tough 1 Hard Machining Data ap fz IC830 IC808 Designation APMX RE Rg(1) IC S KRINS(2) (mm) (mm/t) TRFF TXMT 0702 0.60 0.50 1.00 5.30 2.40 18.0 • • 0.20-0.60 0.50-0.80 TRFF TXMT 1004 0.80 0.70 1.40 7.30 3.90 17.0 • • 0.20-0.80 0.70-1.20 (1) Radius for programming (2) Edge angle related to the wiper For tools, see pages: TR6 ER (313) • TR6 ER-M (314) • TR6 FR (316) S TR45 TXMT Single-Sided Inserts with IC Three Cutting Edges for 45° Chamfering and Face Milling 45° Rd° APMX RE Dimensions Tough 1 Hard Recommended Machining Data ap fz IC830 IC808 Designation APMX RE IC S (mm) (mm/t) TR45 TXMT 1004 3.00 0.40 7.30 3.90 • • 1.00-3.00 0.20-0.40 For tools, see pages: TR6 ER (313) • TR6 ER-M (314) • TR6 FR (316) S PNMT 0602-TN IC Pentagonal Inserts for Upper and Bottom Chamfering Ø2.9 Ø8.36 L RE Recommended Dimensions Machining Data fz IC830 Designation L RE IC S (mm/t) PNMT 0602-TN 2.30 0.20 6.00 2.10 • 0.07-0.12 • For cutting speed recommendations, see pages 616-620 For tools, see pages: CH45-MM-PN06 (51) • CH45-PN06 (51) 613
