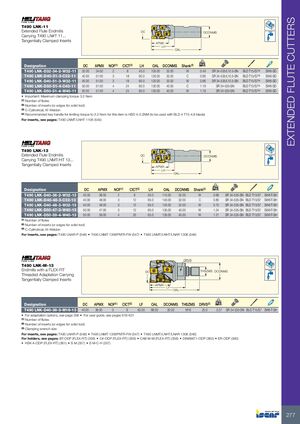

EXTENDED FLUTE CUTTERS T490 LNK-11 Extended Flute Endmills DC DCONMS Carrying T490 LN#T 11... Tangentially Clamped Inserts APMX LH OAL kg Designation DC APMX NOF(1) CICT(2) LH OAL DCONMS Shank(3) T490 LNK-D32-34-2-W32-11 32.00 34.00 2 8 45.0 105.00 32.00 W 0.49 SR 34-535/L10.5-SN BLD T15/S7(a) SW6-SD T490 LNK-D40-51-3-C32-11 40.00 51.00 3 18 60.0 120.00 32.00 C 0.66 SR 34-535/L10.5-SN BLD T15/S7(a) SW6-SD T490 LNK-D40-51-3-W32-11 40.00 51.00 3 18 60.0 120.00 32.00 W 0.66 SR 34-535/L10.5-SN BLD T15/S7(a) SW6-SD T490 LNK-D50-51-4-C40-11 50.00 51.00 4 24 60.0 130.00 40.00 C 1.18 SR 34-535-SN BLD T15/S7(a) SW6-SD T490 LNK-D50-51-4-W40-11 50.00 51.00 4 24 60.0 130.00 40.00 W 1.18 SR 34-535-SN BLD T15/S7(a) SW6-SD • Important: Maximum clamping torque 3.2 Nxm (1) Number of flutes (2) Number of inserts (or edges for solid tool) (3) C-Cylindrical, W-Weldon (a) Recommended key handle for limiting torque to 3.2 Nxm for this item is HSD 4-3.2NM (to be used with BLD 4 T15-4.8 blade) For inserts, see pages: T490 LNMT/LNHT 1106 (545) T490 LNK-13 Extended Flute Endmills DC DCONMS Carrying T490 LNMT/HT 13... Tangentially Clamped Inserts APMX LH OAL kg Designation DC APMX NOF(1) CICT(2) LH OAL DCONMS Shank(3) T490 LNK-D40-36-2-W32-13 40.00 36.00 2 6 50.0 115.00 32.00 W 0.68 SR 34-535-SN BLD T15/S7 SW6-T-SH T490 LNK-D40-48-3-C32-13 40.00 48.00 3 12 65.0 140.00 32.00 C 0.80 SR 34-535-SN BLD T15/S7 SW6-T-SH T490 LNK-D40-48-3-W32-13 40.00 48.00 3 12 65.0 125.00 32.00 W 0.70 SR 34-535-SN BLD T15/S7 SW6-T-SH T490 LNK-D50-47-3-W40-13 50.00 47.00 3 12 65.0 135.00 40.00 W 1.24 SR 34-535-SN BLD T15/S7 SW6-T-SH T490 LNK-D50-59-4-W40-13 50.00 59.00 4 20 65.0 135.00 40.00 W 1.21 SR 34-535-SN BLD T15/S7 SW6-T-SH (1) Number of flutes (2) Number of inserts (or edges for solid tool) (3) C-Cylindrical, W-Weldon For inserts, see pages: T490 LNAR-P (548) • T490 LNMT 1306PNTR-FW (547) • T490 LNMT/LNHT/LNAR 1306 (546) DRVS T490 LNK-M-13 Endmills with a FLEX-FIT DC THSZMS DCONMS Threaded Adaptation Carrying Tangentially Clamped Inserts APMX LF OAL kg Designation DC APMX NOF(1) CICT(2) LF OAL DCONMS THSZMS DRVS(3) T490 LNK-D40-36-3-M16-13 40.00 36.00 3 9 63.00 88.00 30.00 M16 25.0 0.37 SR 34-535-SN BLD T15/S7 SW6-T-SH • For adaptation options, see page 356 • For user guide, see pages 616-621 (1) Number of flutes (2) Number of inserts (or edges for solid tool) (3) Clamping wrench size For inserts, see pages: T490 LNAR-P (548) • T490 LNMT 1306PNTR-FW (547) • T490 LNMT/LNHT/LNAR 1306 (546) For holders, see pages: BT-ODP (FLEX-FIT) (359) • C#-ODP (FLEX-FIT) (359) • CAB M-M (FLEX-FIT) (358) • DIN69871-ODP (360) • ER-ODP (360) • HSK A-ODP (FLEX-FIT) (361) • S M (357) • S M-C-H (357) 277
