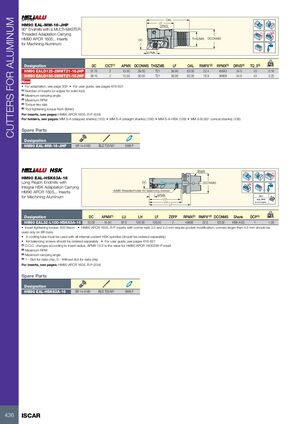

CUTTERS FOR ALUMINUM OAL LF HM90 EAL-MM-16-JHP DRVS 90° Endmills with a MULTI-MASTER Threaded Adaptation Carrying Rd° HM90 APCR 1605... Inserts DC THSZMS DCONMS for Machining Aluminum APMX kg Designation DC CICT(1) APMX DCONMS THSZMS LF OAL RMPX°(2) RPMX(3) DRVS(4) TQ_3(5) HM90 EALD125-2MMT21-16JHP 31.75 2 15.50 29.00 T21 39.90 63.00 22.4 45643 24.0 43 0.16 HM90 EALD150-2MMT21-16JHP 38.10 2 15.50 30.00 T21 39.90 63.00 16.9 36809 24.0 43 0.20 New • For adaptation, see page 303 • For user guide, see pages 616-621 (1) Number of inserts (or edges for solid tool) (2) Maximum ramping angle (3) Maximum RPM (4) Torque key size (5) Tool tightening torque Nxm (lbfxin) For inserts, see pages: HM90 APCR 1605..R-P (534) For holders, see pages: MM S-A (stepped shanks) (102) • MM S-A (straight shanks) (106) • MM S-A-HSK (109) • MM S-B (85° conical shanks) (106) Spare Parts Designation HM90 EAL-MM-16-JHP SR 14-0180 BLD T20/M7 SW6-T Shank Rd° HM90 EAL-HSK63A-16 Long Reach Endmills with DC DCONMS Integral HSK Adaptation Carrying 4xM6 threaded holes for balancing screws HM90 APCR 1605... Inserts APMX for Machining Aluminum LU G2.5 Max. RPM LH or U<1.0 gmm LF kg Designation DC APMX(1) LU LH LF ZEFP RPMX(2) RMPX°(3) DCONMS Shank DCP(4) HM90 EAL32-L100-HSK63A-16 32.00 15.50 97.0 100.00 126.00 2 45600 22.0 63.00 HSK A 63 1 1.06 • Insert tightening torque: 600 Nxcm • HM90 APCR 1605..R-P inserts with corner radii 3.2 and 4.0 mm require pocket modification, corners larger than 4.5 mm should be used only on BR tools • A cooling tube must be used with all internal coolant HSK spindles (should be ordered separately) • Kit balancing screws should be ordered separately • For user guide, see pages 616-621 (1) D.O.C. changes according to insert radius. APMX 15.5 is the value for HM90 APCR 160520R-P insert (2) Maximum RPM (3) Maximum ramping angle (4) 1 - Slot for data chip, 0 - Without slot for data chip For inserts, see pages: HM90 APCR 1605..R-P (534) Spare Parts Designation HM90 EAL-HSK63A-16 SR 14-0180 BLD T20/M7 SW6-T 436 ISCAR
