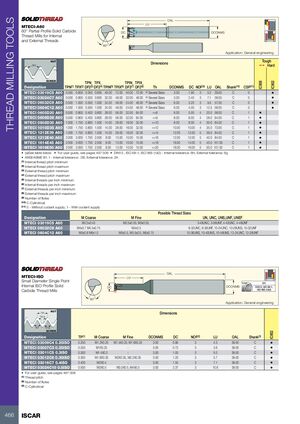

THREAD MILLING TOOLS OAL LU MTECI-A60 60° Partial Profile Solid Carbide DC DCONMS Thread Mills for Internal and External Threads 60° Application: General engineering NUT Tough Dimensions 60° 1 Hard SCREW TPN_ TPX_ TPIN_ TPIX_ IC908 IC902 Designation TPN(1) TPX(2) DF2(3) DF2(4) TPIN(5) TPIX(6) DF2(7) DF2(8) Th DCONMS DC NOF(9) LU OAL Shank(10) CSP(11) MTECI 03019C5 A60 0.350 0.600 0.350 0.600 40.00 72.00 40.00 72.00 (a) Several Sizes 3.00 1.90 3 5.2 39.00 C 0 • MTECI 03024C7 A60 0.500 0.800 0.500 0.800 32.00 48.00 32.00 48.00 (a) Several Sizes 3.00 2.40 3 7.1 38.00 C 0 • MTECI 06032C9 A60 0.500 1.000 0.500 1.000 24.00 48.00 24.00 48.00 (a) Several Sizes 6.00 3.20 3 9.5 57.00 C 0 • MTECI 0604C12 A60 0.500 1.000 0.500 1.000 24.00 48.00 24.00 48.00 (a) Several Sizes 6.00 4.00 3 12.5 58.00 C 0 • MTECI 0605D20 A60 0.500 0.800 0.400 0.800 28.00 56.00 32.00 64.00 =>6 6.00 5.00 4 20.0 58.00 C 1 • MTECI 0808D28 A60 0.500 0.800 0.400 0.800 28.00 56.00 32.00 64.00 =>9 8.00 8.00 4 28.0 64.00 C 1 • MTECI 0808D30 A60 1.000 1.750 0.800 1.500 14.00 28.00 16.00 32.00 =>10 8.00 8.00 4 30.0 64.00 C 1 • MTECI 1010D35 A60 1.000 1.750 0.800 1.500 14.00 28.00 16.00 32.00 =>12 10.00 10.00 4 35.0 73.00 C 1 • MTECI 1212E39 A60 1.000 1.750 0.800 1.500 14.00 28.00 16.00 32.00 =>14 12.00 12.00 5 39.0 84.00 C 1 • MTECI 1212E40 A60 2.000 3.000 1.750 2.500 8.00 13.00 10.00 15.00 =>16 12.00 12.00 5 40.0 84.00 C 1 • MTECI 1614E45 A60 2.000 3.000 1.750 2.500 8.00 13.00 10.00 15.00 =>18 16.00 14.00 5 45.0 101.00 C 1 • MTECI 1616E50 A60 2.000 3.000 1.750 2.500 8.00 13.00 10.00 15.00 =>20 16.00 16.00 5 50.0 101.00 C 1 • • (a)See table below • For user guide, see pages 497-506 • DIN13 , ISO 68-1, ISO 965 (1&2) - Internal tolerance: 6H, External tolerance: 6g • ANSI/ASME B1.1 - Internal tolerance: 2B, External tolerance: 2A (1) Internal thread pitch minimum (2) Internal thread pitch maximum (3) External thread pitch minimum (4) External thread pitch maximum (5) Internal threads per inch minimum (6) Internal threads per inch maximum (7) External threads per inch minimum (8) External threads per inch maximum (9) Number of flutes (10) C-Cylindrical (11) 0 - Without coolant supply, 1 - With coolant supply Possible Thread Sizes Designation M Coarse M Fine UN, UNC, UNS,UNF, UNEF MTECI 03019C5 A60 M2.5x0.45 M2.5x0.35, M3x0.35, 3-48UNC, 3-56UNF, 4-40UNC, 4-48UNF MTECI 06032C9 A60 M4x0.7 M4.5x0.75 M4x0.5 8-32UNC, 8-36UNF, 10-24UNC, 10-28UNS, 10-32UNF MTECI 0604C12 A60 M5x0.8 M6x1.0 M5x0.5, M5.5x0.5, M5x0.75 10-36UNS, 10-40UNS, 10-48UNS, 12-24UNC, 12-28UNF OAL MTECI-ISO LU Small Diameter Single Point 6H Internal ISO Profile Solid DC DCONMS DIN13, ISO 68-1, ISO 965 (1&2) Carbide Thread Mills 60° Application: General engineering NUT TP Dimensions TP/4 60˚ TP/8 SCREW IC902 Designation TP(1) M Coarse M Fine DCONMS DC NOF(2) LU OAL Shank(3) MTECI 03009C4 0.25ISO 0.250 M1.2X0.25 M1.4X0.25, M1.6X0.25 3.00 0.90 3 4.3 39.00 C • MTECI 03007C3 0.25ISO 0.250 M1X0.25 - 3.00 0.72 3 3.6 39.00 C • MTECI 03011C5 0.3ISO 0.300 M1.4X0.3 - 3.00 1.05 3 5.0 39.00 C • MTECI 03012C6 0.35ISO 0.350 M1.6X0.35 M2X0.35, M2.2X0.35 3.00 1.20 3 5.7 39.00 C • MTECI 03016C7 0.4ISO 0.400 M2X0.4 - 3.00 1.55 3 7.1 39.00 C • MTECI 03024C10 0.5ISO 0.500 M3X0.5 M3.5X0.5, M4X0.5 3.00 2.37 3 10.6 39.00 C • • For user guide, see pages 497-506 (1) Thread pitch (2) Number of flutes (3) C-Cylindrical 466 ISCAR
