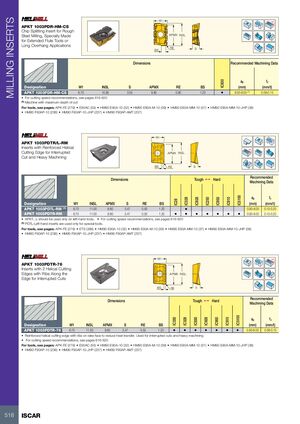

MILLING INSERTS W1 Rd° APKT 1003PDR-HM-CS Chip Splitting Insert for Rough Steel Milling, Specially Made APMX INSL for Extended Flute Tools or Long Overhang Applications RE S BS Dimensions Recommended Machining Data ap fz IC830 Designation W1 INSL S APMX RE BS (mm) (mm/t) APKT 1003PDR-HM-CS 6.70 10.95 3.55 9.80 0.80 1.20 • 8.00-8.00 (1) 0.08-0.15 • For cutting speed recommendations, see pages 616-620 (1) Machine with maximum depth of cut For tools, see pages: APK-FE (279) • E90AC (50) • HM90 E90A-10 (32) • HM90 E90A-M-10 (39) • HM90 E90A-MM-10 (37) • HM90 E90A-MM-10-JHP (38) • HM90 F90AP-10 (236) • HM90 F90AP-10-JHP (237) • HM90 F90AP-AMT (237) W1 APKT 1003PDTR/L-RM Inserts with Reinforced Helical Rd° Cutting Edge for Interrupted APMX INSL Cut and Heavy Machining BS RE S Recommended Dimensions Tough 1 Hard Machining Data ap fz IC5100 IC328 IC928 IC250 IC950 IC910 IC28 Designation W1 INSL APMX S RE BS (mm) (mm/t) APKT 1003PDTL-RM (1) 6.70 11.00 9.80 3.47 0.50 1.20 • 0.90-8.00 0.10-0.20 APKT 1003PDTR-RM 6.70 11.00 9.80 3.47 0.50 1.20 • • • • • • • 0.90-8.00 0.10-0.20 • APKT...L should be used only on left-hand tools. • For cutting speed recommendations, see pages 616-620 (1) PDTL-Left-hand inserts are used only for special tools. For tools, see pages: APK-FE (279) • ETS (389) • HM90 E90A-10 (32) • HM90 E90A-M-10 (39) • HM90 E90A-MM-10 (37) • HM90 E90A-MM-10-JHP (38) • HM90 F90AP-10 (236) • HM90 F90AP-10-JHP (237) • HM90 F90AP-AMT (237) W1 Rd° APKT 1003PDTR-76 Inserts with 2 Helical Cutting Edges with Ribs Along the APMX INSL Edge for Interrupted Cuts BS RE S Recommended Dimensions Tough 1 Hard Machining Data IC5100 ap fz IC330 IC328 IC830 IC928 IC950 IC910 Designation W1 INSL APMX S RE BS (mm) (mm/t) APKT 1003PDTR-76 6.70 11.00 9.80 3.47 0.50 1.20 • • • • • • • 0.90-8.00 0.08-0.15 • Reinforced helical cutting edge with ribs on rake face to reduce heat transfer. Used for interrupted cuts and heavy machining • For cutting speed recommendations, see pages 616-620 For tools, see pages: APK-FE (279) • E90AC (50) • HM90 E90A-10 (32) • HM90 E90A-M-10 (39) • HM90 E90A-MM-10 (37) • HM90 E90A-MM-10-JHP (38) • HM90 F90AP-10 (236) • HM90 F90AP-10-JHP (237) • HM90 F90AP-AMT (237) 518 ISCAR
