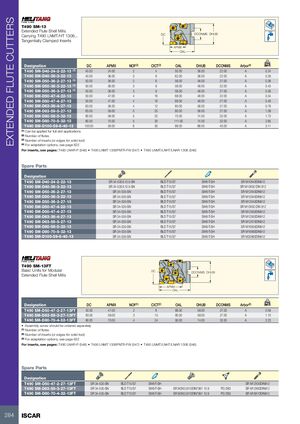

EXTENDED FLUTE CUTTERS T490 SM-13 Extended Flute Shell Mills DC DCONMS DHUB Carrying T490 LNMT/HT 1306... Tangentially Clamped Inserts APMX OAL kg Designation DC APMX NOF(2) CICT(3) OAL DHUB DCONMS Arbor(4) T490 SM-D40-24-2-22-13 (1) 40.00 24.00 2 4 50.00 38.00 22.00 A 0.24 T490 SM-D40-36-3-22-13 40.00 36.00 3 9 62.00 38.00 22.00 A 0.29 T490 SM-D50-36-2-27-13 (1) 50.00 36.00 2 6 56.00 48.00 27.00 A 0.38 T490 SM-D50-36-3-22-13 (1) 50.00 36.00 3 9 56.00 48.00 22.00 A 0.43 T490 SM-D50-36-3-27-13 (1) 50.00 36.00 3 9 56.00 48.00 27.00 A 0.39 T490 SM-D50-47-4-22-13 50.00 47.00 4 16 68.00 48.00 22.00 A 0.54 T490 SM-D50-47-4-27-13 50.00 47.00 4 16 68.00 48.00 27.00 A 0.49 T490 SM-D63-36-4-27-13 63.00 36.00 4 12 60.00 58.00 27.00 A 0.79 T490 SM-D63-59-5-27-13 63.00 59.00 5 25 80.00 58.00 27.00 A 1.09 T490 SM-D80-58-5-32-13 80.00 58.00 5 25 75.00 74.00 32.00 A 1.73 T490 SM-D80-70-5-32-13 80.00 70.00 5 30 111.00 74.00 32.00 A 2.65 T490 SM-D100-59-6-40-13 100.00 59.00 6 30 86.00 88.00 40.00 A 3.11 (1) Can be applied for full slot applications (2) Number of flutes (3) Number of inserts (or edges for solid tool) (4) For adaptation options, see page 622 For inserts, see pages: T490 LNAR-P (548) • T490 LNMT 1306PNTR-FW (547) • T490 LNMT/LNHT/LNAR 1306 (546) Spare Parts Designation T490 SM-D40-24-2-22-13 SR 34-535/L10.5-SN BLD T15/S7 SW6-T-SH SR M10X40DIN912 T490 SM-D40-36-3-22-13 SR 34-535/L10.5-SN BLD T15/S7 SW6-T-SH SR M10X50 DIN 912 T490 SM-D50-36-2-27-13 SR 34-535-SN BLD T15/S7 SW6-T-SH SR M12X45DIN912 T490 SM-D50-36-3-22-13 SR 34-535-SN BLD T15/S7 SW6-T-SH SR M10X40DIN912 T490 SM-D50-36-3-27-13 SR 34-535-SN BLD T15/S7 SW6-T-SH SR M12X45DIN912 T490 SM-D50-47-4-22-13 SR 34-535-SN BLD T15/S7 SW6-T-SH SR M10X50 DIN 912 T490 SM-D50-47-4-27-13 SR 34-535-SN BLD T15/S7 SW6-T-SH SR M12X50DIN912 T490 SM-D63-36-4-27-13 SR 34-535-SN BLD T15/S7 SW6-T-SH SR M12X50DIN912 T490 SM-D63-59-5-27-13 SR 34-535-SN BLD T15/S7 SW6-T-SH SR M12X70DIN912 T490 SM-D80-58-5-32-13 SR 34-535-SN BLD T15/S7 SW6-T-SH SR M16X55DIN912 T490 SM-D80-70-5-32-13 SR 34-535-SN BLD T15/S7 SW6-T-SH SR M16X90DIN912 T490 SM-D100-59-6-40-13 SR 34-535-SN BLD T15/S7 SW6-T-SH SR M20X60DIN912 T490 SM-13FT Basic Units for Modular DC DCONMS DHUB Extended Flute Shell Mills APMX OAL kg Designation DC APMX NOF(1) CICT(2) OAL DHUB DCONMS Arbor(3) T490 SM-D50-47-2-27-13FT 50.00 47.00 2 8 66.50 58.00 27.00 A 0.59 T490 SM-D63-59-3-27-13FT 63.00 59.00 3 15 80.00 58.00 27.00 A 1.10 T490 SM-D80-70-4-32-13FT 80.00 70.00 4 24 95.00 74.00 32.00 A 2.23 • Assembly screw should be ordered separately (1) Number of flutes (2) Number of inserts (or edges for solid tool) (3) For adaptation options, see page 622 For inserts, see pages: T490 LNAR-P (548) • T490 LNMT 1306PNTR-FW (547) • T490 LNMT/LNHT/LNAR 1306 (546) Spare Parts Designation T490 SM-D50-47-2-27-13FT SR 34-535-SN BLD T15/S7 SW6-T-SH SR M12X50DIN912 T490 SM-D63-59-3-27-13FT SR 34-535-SN BLD T15/S7 SW6-T-SH SR M3X0.5X10DIN7991 10.9 PG D63 SR M12X60DIN912 T490 SM-D80-70-4-32-13FT SR 34-535-SN BLD T15/S7 SW6-T-SH SR M3X0.5X10DIN7991 10.9 PG D63 SR M16X70DIN912 284 ISCAR
