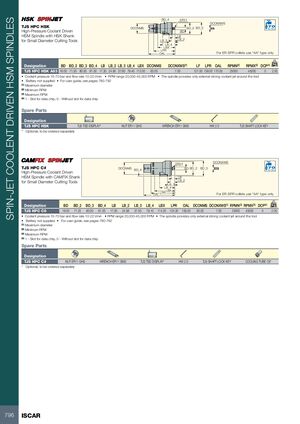

SPIN-JET COOLENT DRIVEN HSM SPINDLES BD_4 ER11 DCONXWS TJS HPC HSK DCONMS BD_2 BD_3 70 Bar Max High-Pressure Coolant Driven BD HSM Spindle with HSK Shank LB LB_2 for Small Diameter Cutting Tools LB_3 LB_4 LBX LPR OAL For ER-SPR collets use "AA" type only kg Designation BD BD_2 BD_3 BD_4 LB LB_2 LB_3 LB_4 LBX DCONMS DCONXWS(1) LF LPR OAL RPMN(2) RPMX(3) DCP(4) TJS HPC HSK A63 16.00 71.30 80.00 81.00 17.30 24.90 37.80 79.40 112.00 63.00 7.00 121.00 138.00 170.00 25000 45000 0 2.00 • Coolant pressure 15-70 bar and flow rate 10-22 l/min • RPM range 20,000-45,000 RPM • The spindle provides only external strong coolant jet around the tool • Battery not supplied • For user guide, see pages 790-792 (1) Maximum diameter (2) Minimum RPM (3) Maximum RPM (4) 1 - Slot for data chip, 0 - Without slot for data chip Spare Parts Designation TJS HPC HSK TJS TSD DISPLAY* NUT ER11 GHS WRENCH ER11 SMS HW 2.0 TJS SHAFT LOCK KEY * Optional, to be ordered separately ER11 DCONXWS TJS HPC C# DCONMS BD_4 BD BD_2 BD_3 70 Bar Max High-Pressure Coolant Driven HSM Spindle with CAMFIX Shank LB LB_2 for Small Diameter Cutting Tools LB_3 LB_4 LBX LPR For ER-SPR collets use "AA" type only OAL Designation BD BD_2 BD_3 BD_4 LB LB_2 LB_3 LB_4 LBX LPR OAL DCONMS DCONXWS(1) RPMN(2) RPMX(3) DCP(4) kg TJS HPC C6 16.00 71.25 80.00 81.00 17.00 24.58 37.50 79.10 114.30 124.30 159.00 63.00 7.00 25000 45000 0 2.00 • Coolant pressure 15-70 bar and flow rate 10-22 l/min • RPM range 20,000-45,000 RPM • The spindle provides only external strong coolant jet around the tool • Battery not supplied • For user guide, see pages 790-792 (1) Maximum diameter (2) Minimum RPM (3) Maximum RPM (4) 1 - Slot for data chip, 0 - Without slot for data chip Spare Parts Designation TJS HPC C# NUT ER11 GHS WRENCH ER11 SMS TJS TSD DISPLAY* HW 2.0 TJS SHAFT LOCK KEY COOLING TUBE C6* * Optional, to be ordered separately 796 ISCAR
