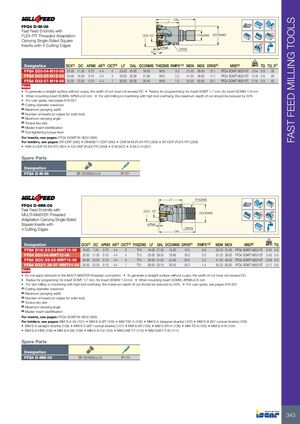

FAST FEED MILLING TOOLS OAL LF FFQ4 D-M-06 Fast Feed Endmills with Rd° FLEX-FIT Threaded Adaptation DCX DC THSZMS DCONMS Carrying Single-Sided Square Inserts with 4 Cutting Edges APMX DRVS 12˚ kg Designation DCX(1) DC APMX AE(2) CICT(3) LF OAL DCONMS THSZMS RMPX°(4) MDN MDX DRVS(5) MIID(6) TQ TQ_3(7) FFQ4 D20-04-M10-06 20.00 11.20 0.70 4.4 4 25.00 45.00 18.00 M10 3.5 31.20 39.00 15.1 FFQ4 SOMT 060210T 0.04 0.9 29 FFQ4 D25-05-M12-06 25.00 16.20 0.70 4.4 5 30.00 52.00 21.00 M12 2.2 41.20 49.00 17.1 FFQ4 SOMT 060210T 0.18 0.9 33 FFQ4 D32-07-M16-06 32.00 23.20 0.70 4.4 7 30.00 55.00 29.40 M16 1.4 55.20 63.00 25.1 FFQ4 SOMT 060210T 0.16 0.9 40 New • To generate a straight surface without cusps, the width of cut must not exceed DC • Radius for programming: for insert SOMT 1.7 mm, for insert SOMW 1.9 mm • When mounting insert SOMW, APMX=0.6 mm • For slot milling or machining with high tool overhang, the maximum depth of cut should be reduced by 50% • For user guide, see pages 616-621 (1) Cutting diameter maximum (2) Maximum plunging width (3) Number of inserts (or edges for solid tool) (4) Maximum ramping angle (5) Torque key size (6) Master insert identification (7) Tool tightening torque Nxm For inserts, see pages: FFQ4 SOMT/W 0602 (589) For holders, see pages: ER-ODP (360) • DIN69871-ODP (360) • CAB M-M (FLEX-FIT) (358) • BT-ODP (FLEX-FIT) (359) • HSK A-ODP (FLEX-FIT) (361) • C#-ODP (FLEX-FIT) (359) • S M (357) • S M-C-H (357) Spare Parts Designation FFQ4 D-M-06 SR 10516050-L4.6 IP-7/51 LF THSZMS FFQ4 D-MM-06 Fast Feed Endmills with DCX DC Rd° DCONMS MULTI-MASTER Threaded Adaptation Carrying Single-Sided Square Inserts with APMX 4 Cutting Edges DRVS OAL kg Designation DCX(1) DC APMX AE(2) CICT(3) THSZMS LF OAL DCONMS DRVS(4) RMPX°(5) MDN MDX MIID(6) TQ FFQ4 D16/.63-03-MMT10-06 16.00 7.20 0.70 4.4 3 T10 16.00 27.30 15.20 13.0 6.0 23.20 31.00 FFQ4 SOMT 060210T 0.02 0.9 FFQ4 D20-04-MMT12-06 20.00 11.20 0.70 4.4 4 T12 25.00 38.30 18.80 16.0 3.5 31.20 39.00 FFQ4 SOMT 060210T 0.05 0.9 FFQ4 D25/.98-05-MMT15-06 25.00 16.20 0.70 4.4 5 T15 30.00 47.00 24.00 20.0 2.2 41.20 49.00 FFQ4 SOMT 060210T 0.09 0.9 FFQ4 D32/1.26-07-MMT21-06 32.00 23.20 0.70 4.4 7 T21 30.00 53.10 29.40 24.0 1.4 55.20 63.00 FFQ4 SOMT 060210T 0.17 0.9 New • Do not apply lubricant to the MULTI-MASTER threaded connection. • To generate a straight surface without cusps, the width of cut must not exceed DC. • Radius for programing: for insert SOMT 1.7 mm, for insert SOMW 1.9 mm. • When mounting insert SOMW, APMX=0.6 mm • For slot milling or machining with high tool overhang, the maximum depth of cut should be reduced by 50%. • For user guide, see pages 616-621 (1) Cutting diameter maximum (2) Maximum plunging width (3) Number of inserts (or edges for solid tool) (4) Torque key size (5) Maximum ramping angle (6) Master insert identification For inserts, see pages: FFQ4 SOMT/W 0602 (589) For holders, see pages: MM S-A-AV (101) • MM S-A-BT (109) • MM TS2-A (105) • MM S-A (stepped shanks) (102) • MM S-B (85° conical shanks) (106) • MM S-A (straight shanks) (106) • MM S-D (89° conical shanks) (107) • MM S-ER (108) • MM S-ER-H (108) • MM TS-A (105) • MM S-A-N (104) • MM S-A-HSK (109) • MM S-A-SK (109) • MM S-A-C# (104) • MM CAB-T-T (110) • MM CAB-T-T-W (111) Spare Parts Designation FFQ4 D-MM-06 SR 10516050-L4.6 IP-7/51 343
