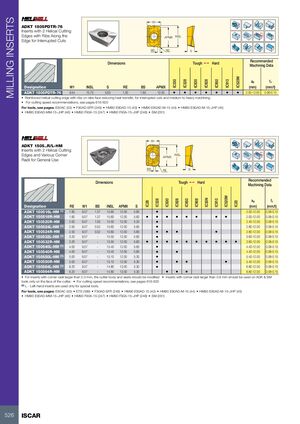

Фрезерные инструменты Iscar 2026 - страница 528

MILLING INSERTS W1 ADKT 1505PDTR-76 Inserts with 2 Helical Cutting Rd° Edges with Ribs Along the APMX INSL Edge for Interrupted Cuts BS RE S Recommended Dimensions Tough 1 Hard Machining Data IC520M ap fz IC330 IC328 IC830 IC928 IC950 IC910 Designation W1 INSL S RE BS APMX (mm) (mm/t) ADKT 1505PDTR-76 9.54 15.75 5.63 1.00 1.60 12.00 • • • • • • • 2.00-12.00 0.08-0.15 • Reinforced helical cutting edge with ribs on rake face reducing heat transfer, for interrupted cuts and medium to heavy machining. • For cutting speed recommendations, see pages 616-620 For tools, see pages: E90AC (50) • F90AD-SFR (249) • HM90 E90AD-15 (43) • HM90 E90AD-M-15 (44) • HM90 E90AD-M-15-JHP (45) • HM90 E90AD-MM-15-JHP (46) • HM90 F90A-15 (247) • HM90 F90A-15-JHP (248) • SM (291) W1 ADKT 1505..R/L-HM Inserts with 2 Helical Cutting Rd° Edges and Various Corner APMX INSL Radii for General Use BS RE S Recommended Dimensions Tough 1 Hard Machining Data IC520M IC30N ap fz IC328 IC830 IC928 IC950 IC908 IC910 IC28 IC20 Designation RE W1 BS INSL APMX S (mm) (mm/t) ADKT 150516L-HM (1) 1.60 9.57 1.37 15.60 12.00 5.60 • 2.00-12.00 0.08-0.15 ADKT 150516R-HM 1.60 9.57 1.37 15.60 12.00 5.60 • • • • • • • • 2.00-12.00 0.08-0.15 ADKT 150520R-HM 2.00 9.57 1.00 15.50 12.00 5.20 • 2.40-12.00 0.08-0.15 ADKT 150524L-HM (1) 2.50 9.57 0.52 15.60 12.00 5.60 • 2.80-12.00 0.08-0.15 ADKT 150524R-HM 2.50 9.57 0.52 15.60 12.00 5.60 • • • • 2.80-12.00 0.08-0.15 ADKT 150532L-HM (1) 3.20 9.57 - 15.50 12.00 5.60 • 3.60-12.00 0.08-0.15 ADKT 150532R-HM 3.20 9.57 - 15.50 12.00 5.60 • • • • • • • • • • 3.60-12.00 0.08-0.15 ADKT 150540L-HM (1) 4.00 9.57 - 15.40 12.00 5.60 • 4.40-12.00 0.08-0.15 ADKT 150540R-HM 4.00 9.57 - 15.40 12.00 5.60 • • 4.40-12.00 0.08-0.15 ADKT 150550L-HM (1) 5.00 9.57 - 15.10 12.00 5.30 • 5.40-12.00 0.08-0.15 ADKT 150550R-HM 5.00 9.57 - 15.10 12.00 5.30 • • • • 5.40-12.00 0.08-0.15 ADKT 150564L-HM (1) 6.20 9.57 - 14.80 13.00 5.30 • 6.80-12.00 0.08-0.15 ADKT 150564R-HM 6.20 9.57 - 14.80 13.00 5.30 • • • 6.80-12.00 0.08-0.15 • For inserts with corner radii larger than 2.0 mm, the cutter body and seats should be modified • Inserts with corner radii larger than 0.8 mm should be used on ADK & SM tools only on the face of the cutter. • For cutting speed recommendations, see pages 616-620 (1) L - Left-hand inserts are used only for special tools. For tools, see pages: E90AC (50) • ETS (389) • F90AD-SFR (249) • HM90 E90AD-15 (43) • HM90 E90AD-M-15 (44) • HM90 E90AD-M-15-JHP (45) • HM90 E90AD-MM-15-JHP (46) • HM90 F90A-15 (247) • HM90 F90A-15-JHP (248) • SM (291) 526 ISCAR
