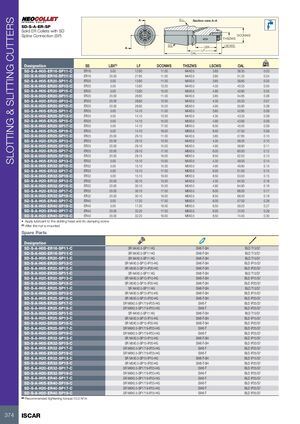

SLOTTING & SLITTING CUTTERS A G.L. Section view A-A SD-S-A-ER-SP Solid ER Collets with SD Spline Connection (SP) DCONWS THSZWS SS LSCWS A LBX LF OAL kg Designation SS LBX(1) LF DCONWS THSZWS LSCWS OAL SD-S-A-H05-ER16-SP11-C ER16 5.00 12.60 11.00 M4X0.5 3.85 36.35 0.03 SD-S-A-H20-ER16-SP11-C ER16 20.00 27.60 11.00 M4X0.5 3.85 51.35 0.04 SD-S-A-H05-ER20-SP11-C ER20 5.00 13.60 11.00 M4X0.5 3.85 39.85 0.05 SD-S-A-H05-ER20-SP13-C ER20 5.00 13.60 13.00 M4X0.5 4.35 40.35 0.05 SD-S-A-H05-ER20-SP15-C ER20 5.00 13.60 15.00 M5X0.5 4.90 40.90 0.05 SD-S-A-H20-ER20-SP11-C ER20 20.00 28.60 11.00 M4X0.5 3.85 54.85 0.06 SD-S-A-H20-ER20-SP13-C ER20 20.00 28.60 13.00 M4X0.5 4.35 55.35 0.07 SD-S-A-H20-ER20-SP15-C ER20 20.00 28.60 15.00 M5X0.5 4.90 55.90 0.08 SD-S-A-H05-ER25-SP11-C ER25 5.00 14.10 11.00 M4X0.5 3.85 42.85 0.09 SD-S-A-H05-ER25-SP13-C ER25 5.00 14.10 13.00 M4X0.5 4.35 43.35 0.09 SD-S-A-H05-ER25-SP15-C ER25 5.00 14.10 15.00 M5X0.5 4.90 43.90 0.09 SD-S-A-H05-ER25-SP17-C ER25 5.00 14.10 17.00 M6X0.5 6.00 45.00 0.09 SD-S-A-H05-ER25-SP19-C ER25 5.00 14.10 19.00 M6X0.5 8.50 47.50 0.09 SD-S-A-H20-ER25-SP11-C ER25 20.00 29.10 11.00 M4X0.5 3.85 57.85 0.10 SD-S-A-H20-ER25-SP13-C ER25 20.00 29.10 13.00 M4X0.5 4.35 58.35 0.10 SD-S-A-H20-ER25-SP15-C ER25 20.00 29.10 15.00 M5X0.5 4.90 58.90 0.11 SD-S-A-H20-ER25-SP17-C ER25 20.00 29.10 17.00 M6X0.5 6.00 60.00 0.12 SD-S-A-H20-ER25-SP19-C ER25 20.00 29.10 19.00 M6X0.5 8.50 62.50 0.13 SD-S-A-H05-ER32-SP13-C ER32 5.00 15.10 13.00 M4X0.5 4.35 49.35 0.14 SD-S-A-H05-ER32-SP15-C ER32 5.00 15.10 15.00 M5X0.5 4.90 49.90 0.15 SD-S-A-H05-ER32-SP17-C ER32 5.00 15.10 17.00 M6X0.5 6.00 51.00 0.15 SD-S-A-H05-ER32-SP19-C ER32 5.00 15.10 19.00 M6X0.5 8.50 53.50 0.15 SD-S-A-H20-ER32-SP13-C ER32 20.00 30.10 13.00 M4X0.5 4.35 64.35 0.16 SD-S-A-H20-ER32-SP15-C ER32 20.00 30.10 15.00 M5X0.5 4.90 64.90 0.16 SD-S-A-H20-ER32-SP17-C ER32 20.00 30.10 17.00 M6X0.5 6.00 66.00 0.17 SD-S-A-H20-ER32-SP19-C ER32 20.00 30.10 19.00 M6X0.5 8.50 68.50 0.18 SD-S-A-H05-ER40-SP17-C ER40 5.00 17.20 17.00 M6X0.5 6.00 57.00 0.26 SD-S-A-H05-ER40-SP19-C ER40 5.00 17.20 19.00 M6X0.5 8.50 59.20 0.27 SD-S-A-H20-ER40-SP17-C ER40 20.00 32.20 17.00 M6X0.5 6.00 72.00 0.29 SD-S-A-H20-ER40-SP19-C ER40 20.00 32.20 19.00 M6X0.5 8.50 74.50 0.30 • Apply lubricant to the slotting head and its clamping screw (1) After the nut is mounted Spare Parts Designation SD-S-A-H05-ER16-SP11-C SR M4X0.5-SP11 HG SW6-T-SH BLD T15/S7 SD-S-A-H20-ER16-SP11-C SR M4X0.5-SP11 HG SW6-T-SH BLD T15/S7 SD-S-A-H05-ER20-SP11-C SR M4X0.5-SP11 HG SW6-T-SH BLD T15/S7 SD-S-A-H05-ER20-SP13-C SR M4X0.5-SP13-IP15-HG SW6-T-SH BLD IP15/S7 SD-S-A-H05-ER20-SP15-C SR M5X0.5-SP15-IP20-HG SW6-T-SH BLD IP20/S7 SD-S-A-H20-ER20-SP11-C SR M4X0.5-SP11 HG SW6-T-SH BLD T15/S7 SD-S-A-H20-ER20-SP13-C SR M4X0.5-SP13-IP15-HG SW6-T-SH BLD IP15/S7 SD-S-A-H20-ER20-SP15-C SR M5X0.5-SP15-IP20-HG SW6-T-SH BLD IP20/S7 SD-S-A-H05-ER25-SP11-C SR M4X0.5-SP11 HG SW6-T-SH BLD T15/S7 SD-S-A-H05-ER25-SP13-C SR M4X0.5-SP13-IP15-HG SW6-T-SH BLD IP15/S7 SD-S-A-H05-ER25-SP15-C SR M5X0.5-SP15-IP20-HG SW6-T-SH BLD IP20/S7 SD-S-A-H05-ER25-SP17-C SR M6X0.5-SP1719-IP25-HG SW6-T BLD IP25/S7 SD-S-A-H05-ER25-SP19-C SR M6X0.5-SP1719-IP25-HG SW6-T BLD IP25/S7 SD-S-A-H20-ER25-SP11-C SR M4X0.5-SP11 HG SW6-T-SH BLD T15/S7 SD-S-A-H20-ER25-SP13-C SR M4X0.5-SP13-IP15-HG SW6-T-SH BLD IP15/S7 SD-S-A-H20-ER25-SP15-C SR M5X0.5-SP15-IP20-HG SW6-T-SH BLD IP20/S7 SD-S-A-H20-ER25-SP17-C SR M6X0.5-SP1719-IP25-HG SW6-T BLD IP25/S7 SD-S-A-H20-ER25-SP19-C SR M6X0.5-SP1719-IP25-HG SW6-T BLD IP25/S7 SD-S-A-H05-ER32-SP13-C SR M4X0.5-SP13-IP15-HG SW6-T-SH BLD IP15/S7 SD-S-A-H05-ER32-SP15-C SR M5X0.5-SP15-IP20-HG SW6-T-SH BLD IP20/S7 SD-S-A-H05-ER32-SP17-C SR M6X0.5-SP1719-IP25-HG SW6-T BLD IP25/S7 SD-S-A-H05-ER32-SP19-C SR M6X0.5-SP1719-IP25-HG SW6-T BLD IP25/S7 SD-S-A-H20-ER32-SP13-C SR M4X0.5-SP13-IP15-HG SW6-T-SH BLD IP15/S7 SD-S-A-H20-ER32-SP15-C SR M5X0.5-SP15-IP20-HG SW6-T-SH BLD IP20/S7 SD-S-A-H20-ER32-SP17-C SR M6X0.5-SP1719-IP25-HG SW6-T BLD IP25/S7 SD-S-A-H20-ER32-SP19-C SR M6X0.5-SP1719-IP25-HG SW6-T BLD IP25/S7 SD-S-A-H05-ER40-SP17-C SR M6X0.5-SP1719-IP25-HG SW6-T BLD IP25/S7 SD-S-A-H05-ER40-SP19-C SR M6X0.5-SP1719-IP25-HG SW6-T BLD IP25/S7 SD-S-A-H20-ER40-SP17-C SR M6X0.5-SP1719-IP25-HG SW6-T BLD IP25/S7 SD-S-A-H20-ER40-SP19-C SR M6X0.5-SP1719-IP25-HG SW6-T BLD IP25/S7 (a) Recommended tightening torque:10.0 N*m 374 ISCAR
