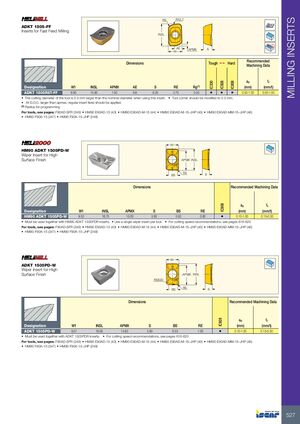

Фрезерные инструменты Iscar 2026 - страница 529

MILLING INSERTS RE R12.7 ADKT 1505-FF Inserts for Fast Feed Milling INSL Rd° AE APMX S W1 Recommended Dimensions Tough 1 Hard Machining Data ap fz IC330 IC928 IC808 Designation W1 INSL APMX AE S RE Rg(1) (mm) (mm/t) ADKT 1505R8T-FF 9.90 15.90 1.50 6.6 6.20 2.70 3.50 • • • 0.50-1.00 0.50-1.50 • The cutting diameter of the tool is 0.5 mm larger than the nominal diameter when using this insert. • Tool corner should be modified to 2.0 mm. • At D.O.C. larger than apmax, regular insert feed should be applied. (1) Radius for programming For tools, see pages: F90AD-SFR (249) • HM90 E90AD-15 (43) • HM90 E90AD-M-15 (44) • HM90 E90AD-M-15-JHP (45) • HM90 E90AD-MM-15-JHP (46) • HM90 F90A-15 (247) • HM90 F90A-15-JHP (248) W1 HM90 ADKT 1505PD-W W Wiper Insert for High Surface Finish M9 APMX lNSL 0 W RE S BS Dimensions Recommended Machining Data ap fz IC908 Designation W1 INSL APMX S BS RE (mm) (mm/t) HM90 ADKT 1505PD-W 9.52 16.75 15.00 5.83 5.92 0.80 • 0.10-1.00 0.15-0.30 • Must be used together with HM90 ADKT 1505PDR inserts. • Use a single wiper insert per tool. • For cutting speed recommendations, see pages 616-620 For tools, see pages: F90AD-SFR (249) • HM90 E90AD-15 (43) • HM90 E90AD-M-15 (44) • HM90 E90AD-M-15-JHP (45) • HM90 E90AD-MM-15-JHP (46) • HM90 F90A-15 (247) • HM90 F90A-15-JHP (248) W1 ADKT 1505PD-W W Wiper Insert for High Surface Finish M9 APMX INSL RE820 0 RE S BS Dimensions Recommended Machining Data ap fz IC928 Designation W1 INSL APMX S BS RE (mm) (mm/t) ADKT 1505PD-W 9.57 16.00 14.63 5.60 6.53 1.00 • 0.10-1.00 0.15-0.30 • Must be used together with ADKT 1505PDR inserts. • For cutting speed recommendations, see pages 616-620 For tools, see pages: F90AD-SFR (249) • HM90 E90AD-15 (43) • HM90 E90AD-M-15 (44) • HM90 E90AD-M-15-JHP (45) • HM90 E90AD-MM-15-JHP (46) • HM90 F90A-15 (247) • HM90 F90A-15-JHP (248) 527
