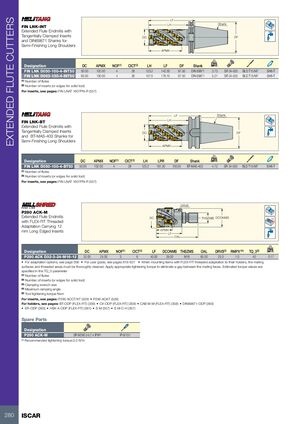

EXTENDED FLUTE CUTTERS LF LH Shank FIN LNK-INT Extended Flute Endmills with Tangentially Clamped Inserts DC DF and DIN69871 Shanks for Semi-Finishing Long Shoulders APMX kg Designation DC APMX NOF(1) CICT(2) LH LF DF Shank FIN LNK D050-100-4-INT50 50.00 102.00 4 28 123.2 142.30 97.50 DIN 69871 3.73 SR 34-535 BLD T15/M7 SW6-T FIN LNK D063-130-4-INT50 63.00 130.00 4 36 157.0 176.10 97.50 DIN 69871 5.21 SR 34-535 BLD T15/M7 SW6-T (1) Number of flutes (2) Number of inserts (or edges for solid tool) For inserts, see pages: FIN LNAT 1607PN-R (557) LF Shank LH FIN LNK-BT Extended Flute Endmills with Tangentially Clamped Inserts DC DF and BT-MAS-403 Shanks for Semi-Finishing Long Shoulders APMX kg Designation DC APMX NOF(1) CICT(2) LH LPR DF Shank FIN LNK D050-100-4-BT50 50.00 102.00 4 28 123.2 161.20 100.00 BT-MAS-403 4.72 SR 34-535 BLD T15/M7 SW6-T (1) Number of flutes (2) Number of inserts (or edges for solid tool) For inserts, see pages: FIN LNAT 1607PN-R (557) DRVS P290 ACK-M Extended Flute Endmills DC THSZMS DCONMS Rd° with FLEX-FIT Threaded Adaptation Carrying 12 APMX mm Long Edged Inserts LF OAL kg Designation DC APMX NOF(1) CICT(2) LF DCONMS THSZMS OAL DRVS(3) RMPX°(4) TQ_3(5) P290 ACK D32-3-24-M16-12 32.00 24.00 3 6 40.00 29.00 M16 65.00 25.0 1.0 40 0.17 • For adaptation options, see page 356 • For user guide, see pages 616-621 • When mounting items with FLEX-FIT threaded adaptation to their holders, the mating surfaces and threaded areas must be thoroughly cleaned. Apply appropriate tightening torque to eliminate a gap between the mating faces. Estimated torque values are specified in the TQ_3 parameter (1) Number of flutes (2) Number of inserts (or edges for solid tool) (3) Clamping wrench size (4) Maximum ramping angle (5) Tool tightening torque Nxm For inserts, see pages: P290 ACCT/KT (529) • P290 ACKT (529) For holders, see pages: BT-ODP (FLEX-FIT) (359) • C#-ODP (FLEX-FIT) (359) • CAB M-M (FLEX-FIT) (358) • DIN69871-ODP (360) • ER-ODP (360) • HSK A-ODP (FLEX-FIT) (361) • S M (357) • S M-C-H (357) Spare Parts Designation P290 ACK-M SR M3X0.5-L7.4 IP9(a) IP-9/151 (a) Recommended tightening torque:2.0 N*m 280 ISCAR
