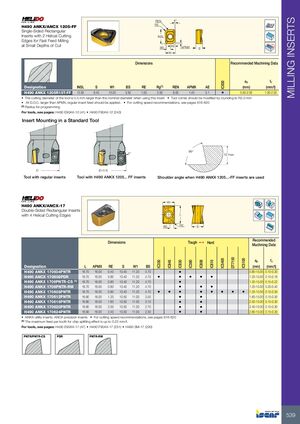

MILLING INSERTS REN 4° RE H490 ANKX/ANCX 1205-FF Single-Sided Rectangular Inserts with 2 Helical Cutting lNSL Edges for Fast Feed Milling at Small Depths of Cut BS AE APMX Rd° S W1 Dimensions Recommended Machining Data ap fz IC830 Designation INSL S W1 BS RE Rg(1) REN APMX AE (mm) (mm/t) H490 ANKX 1205R15T-FF 13.50 6.40 10.20 3.50 1.50 2.50 6.00 1.40 5.1 • 0.50-2.00 1.00-2.00 • The cutting diameter of the tool is 0.5 mm larger than the nominal diameter when using this insert • Tool corner should be modified by rounding to R2.0 mm • At D.O.C. larger than APMX, regular insert feed should be applied. • For cutting speed recommendations, see pages 616-620 (1) Radius for programming For tools, see pages: H490 E90AX-12 (41) • H490 F90AX-12 (243) Insert Mounting in a Standard Tool 86° 4° 4° 12 max D D (D+0.5) (D+0.5) Tool with regular inserts Tool with H490 ANKX 1205... FF inserts Shoulder angle when H490 ANKX 1205...-FF inserts are used W1 H490 ANKX/ANCX-17 Double-Sided Rectangular Inserts 1 with 4 Helical Cutting Edges L 3 BS RE S Recommended Dimensions Tough 1 Hard Machining Data DT7150 ap fz IC5400 IC5100 IC330 IC845 IC830 IC380 IC808 IC810 Designation L APMX RE S W1 BS (mm) (mm/t) H490 ANKX 170604PNTR 16.70 16.00 0.40 10.40 11.20 4.70 • 0.80-15.00 0.15-0.30 H490 ANCX 170608PDR 16.70 16.00 0.80 10.40 11.20 4.70 • • • • • 1.20-15.00 0.10-0.18 H490 ANKX 1706PNTR-CS (1) 16.70 16.00 0.80 10.40 11.20 4.70 • 1.20-15.00 0.15-0.22 H490 ANKX 1706PNTR-RM 16.70 16.00 0.80 10.40 11.20 4.70 • • • 1.20-15.00 0.20-0.40 H490 ANKX 170608PNTR 16.70 16.00 0.80 10.40 11.20 4.70 • • • • • • • • 1.20-15.00 0.15-0.30 H490 ANKX 170612PNTR 16.90 16.00 1.20 10.50 11.00 3.50 • • 1.60-15.00 0.15-0.30 H490 ANKX 170616PNTR 16.90 16.00 1.60 10.50 11.00 3.10 • • 2.00-15.00 0.15-0.30 H490 ANKX 170620PNTR 16.90 16.00 2.00 10.50 11.00 2.70 • • 2.40-15.00 0.15-0.30 H490 ANKX 170624PNTR 16.90 16.00 2.40 10.50 11.00 2.30 • • 2.80-15.00 0.15-0.30 • ANKX-utility inserts. ANCX-precision inserts • For cutting speed recommendations, see pages 616-620 (1) The maximum feed per tooth for chip splitting effect is up to 0.22 mm/t. For tools, see pages: H490 E90AX-17 (47) • H490 F90AX-17 (251) • H490 SM-17 (290) PNTR/PNTR-CS PDR PNTR-RM 539
