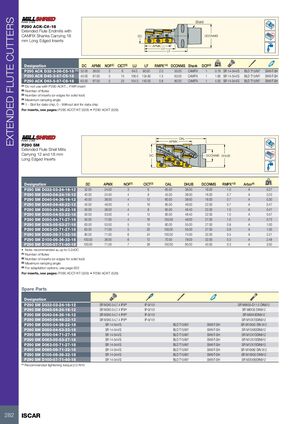

EXTENDED FLUTE CUTTERS Shank P290 ACK-C#-18 Extended Flute Endmills with Rd° CAMFIX Shanks Carrying 18 DC DCONMS mm Long Edged Inserts APMX LU LF Designation DC APMX NOF(2) CICT(3) LU LF RMPX°(4) DCONMS Shank DCP(5) kg P290 ACK D32-3-36-C5-18 (1) 32.00 36.00 3 6 64.0 90.00 2.0 50.00 CAMFIX 1 0.79 SR 14-544/S BLD T15/M7 SW6-T-SH P290 ACK D40-3-87-C6-18 40.00 87.00 3 15 106.0 134.60 1.5 63.00 CAMFIX 1 1.66 SR 14-544/S BLD T15/M7 SW6-T-SH P290 ACK D63-5-87-C8-18 63.00 87.00 5 25 104.0 140.00 0.8 80.00 CAMFIX 1 4.00 SR 14-544/S BLD T15/M7 SW6-T-SH (1) Do not use with P290 ACKT...-FWR insert (2) Number of flutes (3) Number of inserts (or edges for solid tool) (4) Maximum ramping angle (5) 1 - Slot for data chip, 0 - Without slot for data chip For inserts, see pages: P290 ACCT/KT (529) • P290 ACKT (529) OAL APMX P290 SM Extended Flute Shell Mills Rd° Carrying 12 and 18 mm DC DCONMS DHUB Long Edged Inserts kg Designation DC APMX NOF(1) CICT(2) OAL DHUB DCONMS RMPX°(3) Arbor(4) P290 SM D032-03-24-16-12 32.00 24.00 3 6 65.00 38.00 16.00 1.0 A 0.27 P290 SM D040-04-24-16-12 40.00 24.00 4 8 45.00 38.00 16.00 0.7 A 0.23 P290 SM D040-04-36-16-12 40.00 36.00 4 12 60.00 38.00 16.00 0.7 A 0.30 P290 SM D040-04-48-22-12 40.00 48.00 4 16 85.00 48.00 22.00 0.7 A 0.47 P290 SM D050-04-36-22-18 50.00 36.00 4 8 65.00 46.40 22.00 1.0 A 0.47 P290 SM D050-04-53-22-18 50.00 53.00 4 12 80.00 46.40 22.00 1.0 A 0.57 P290 SM D050-04-71-27-18 50.00 71.00 4 16 105.00 48.00 27.00 1.0 A 0.73 P290 SM D063-05-53-27-18 63.00 53.00 5 15 80.00 55.00 27.00 0.8 A 1.00 P290 SM D063-05-71-27-18 63.00 71.00 5 20 100.00 55.00 27.00 0.8 A 1.30 P290 SM D080-06-71-32-18 80.00 71.00 6 24 100.00 74.00 32.00 0.5 A 2.21 P290 SM D100-06-36-32-18 100.00 36.00 6 12 70.00 78.00 32.00 0.3 A 2.48 P290 SM D100-07-71-40-18 100.00 71.00 7 28 100.00 85.00 40.00 0.3 A 3.50 • Note: recommended ae up to 0.2xDC (1) Number of flutes (2) Number of inserts (or edges for solid tool) (3) Maximum ramping angle (4) For adaptation options, see page 622 For inserts, see pages: P290 ACCT/KT (529) • P290 ACKT (529) Spare Parts Designation P290 SM D032-03-24-16-12 SR M3X0.5-L7.4 IP9(a) IP-9/151 SR M8X55-D11.5 DIN912 P290 SM D040-04-24-16-12 SR M3X0.5-L7.4 IP9(a) IP-9/151 SR M8X35 DIN912 P290 SM D040-04-36-16-12 SR M3X0.5-L7.4 IP9(a) IP-9/151 SR M8X45DIN912 P290 SM D040-04-48-22-12 SR M3X0.5-L7.4 IP9(a) IP-9/151 SR M10X70DIN912 P290 SM D050-04-36-22-18 SR 14-544/S BLD T15/M7 SW6-T-SH SR M10X50 DIN 912 P290 SM D050-04-53-22-18 SR 14-544/S BLD T15/M7 SW6-T-SH SR M10X60DIN912 P290 SM D050-04-71-27-18 SR 14-544/S BLD T15/M7 SW6-T-SH SR M12X70DIN912 P290 SM D063-05-53-27-18 SR 14-544/S BLD T15/M7 SW6-T-SH SR M12X70DIN912 P290 SM D063-05-71-27-18 SR 14-544/S BLD T15/M7 SW6-T-SH SR M12X70DIN912 P290 SM D080-06-71-32-18 SR 14-544/S BLD T15/M7 SW6-T-SH SR M16X80 DIN 912 P290 SM D100-06-36-32-18 SR 14-544/S BLD T15/M7 SW6-T-SH SR M16X50 DIN912 P290 SM D100-07-71-40-18 SR 14-544/S BLD T15/M7 SW6-T-SH SR M20X80DIN912 (a) Recommended tightening torque:2.0 N*m 282 ISCAR
