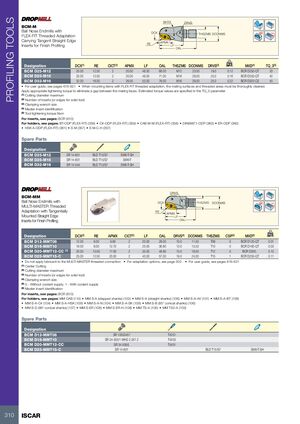

PROFILING TOOLS BHTA DRVS BCM-M Ball Nose Endmills with DCX THSZMS DCONMS Rd° FLEX-FIT Threaded Adaptation Carrying Tangent Straight Edge APMX RE Inserts for Finish Profiling LF OAL kg Designation DCX(1) RE CICT(2) APMX LF OAL THSZMS DCONMS DRVS(3) MIID(4) TQ_3(5) BCM D25-M12 25.00 12.50 2 20.00 46.00 68.00 M12 23.00 19.0 0.12 BCR D250-QT 33 BCM D25-M16 25.00 12.50 2 20.00 46.00 71.00 M16 29.00 25.0 0.16 BCR D250-QT 40 BCM D32-M16 32.00 16.00 2 26.00 53.00 78.00 M16 29.00 25.0 0.22 BCR D320-CS 40 • For user guide, see pages 616-621 • When mounting items with FLEX-FIT threaded adaptation, the mating surfaces and threaded areas must be thoroughly cleaned. Apply appropriate tightening torque to eliminate a gap between the mating faces. Estimated torque values are specified in the TQ_3 parameter (1) Cutting diameter maximum (2) Number of inserts (or edges for solid tool) (3) Clamping wrench size (4) Master insert identification (5) Tool tightening torque Nxm For inserts, see pages: BCR (610) For holders, see pages: BT-ODP (FLEX-FIT) (359) • C#-ODP (FLEX-FIT) (359) • CAB M-M (FLEX-FIT) (358) • DIN69871-ODP (360) • ER-ODP (360) • HSK A-ODP (FLEX-FIT) (361) • S M (357) • S M-C-H (357) Spare Parts Designation BCM D25-M12 SR 14-601 BLD T15/S7 SW6-T-SH BCM D25-M16 SR 14-601 BLD T15/S7 SW6-T BCM D32-M16 SR 14-544 BLD T15/S7 SW6-T-SH DRVS BCM-MM Ball Nose Endmills with DCX THSZMS DCONMS Rd° MULTI-MASTER Threaded Adaptation with Tangentially RE APMX Mounted Straight Edge LF Inserts for Finish Profiling OAL kg Designation DCX(2) RE APMX CICT(3) LF OAL DRVS(4) DCONMS THSZMS CSP(5) MIID(6) BCM D12-MMT08 12.00 6.00 9.60 2 20.00 28.00 10.0 11.50 T08 0 BCR D120-QT 0.01 BCM D16-MMT10 16.00 8.00 12.70 2 25.00 36.80 13.0 15.20 T10 0 BCR D160-QT 0.03 BCM D20-MMT12-CC (1) 20.00 10.00 17.00 2 35.00 48.80 15.0 18.50 T12 0 BCR D200.. 0.10 BCM D25-MMT15-C 25.00 12.50 20.00 2 40.00 57.00 19.0 24.00 T15 1 BCR D250-QT 0.11 • Do not apply lubricant to the MULTI-MASTER threaded connection • For adaptation options, see page 303 • For user guide, see pages 616-621 (1) Center Cutting (2) Cutting diameter maximum (3) Number of inserts (or edges for solid tool) (4) Clamping wrench size (5) 0 - Without coolant supply, 1 - With coolant supply (6) Master insert identification For inserts, see pages: BCR (610) For holders, see pages: MM CAB (110) • MM S-A (stepped shanks) (102) • MM S-A (straight shanks) (106) • MM S-A-AV (101) • MM S-A-BT (109) • MM S-A-C# (104) • MM S-A-HSK (109) • MM S-A-N (104) • MM S-A-SK (109) • MM S-B (85° conical shanks) (106) • MM S-D (89° conical shanks) (107) • MM S-ER (108) • MM S-ER-H (108) • MM TS-A (105) • MM TS2-A (105) Spare Parts Designation BCM D12-MMT08 SR 10503457 T-6/51 BCM D16-MMT10 SR 34-505/1 MHG 2.5X7.2 T-8/53 BCM D20-MMT12-CC SR 34-506/L T-9/51 BCM D25-MMT15-C SR 14-601 BLD T15/S7 SW6-T-SH 310 ISCAR
