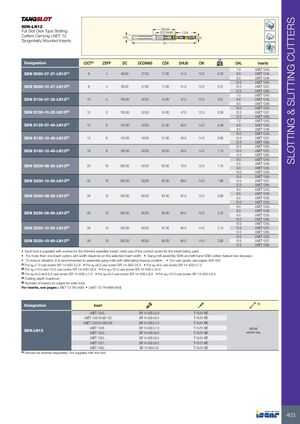

Фрезерные инструменты Iscar 2026 - страница 405

SLOTTING & SLITTING CUTTERS SDN-LN12 DHUB Full Slot Disk Type Slotting DCONMS CDX Cutters Carrying LNET 12 OAL CW Tangentially Mounted Inserts DC Designation CICT(4) ZEFP DC DCONMS CDX DHUB CW kg OAL Inserts 7.0 LNET 1240.. SDN D080-07-27-LN12(1) 8 4 80.00 27.00 17.00 41.0 12.0 0.78 8.0 LNET 1245.. 8.5 LNET 1248.. 10.0 LNET 1255.. SDN D080-10-27-LN12(2) 8 4 80.00 27.00 17.00 41.0 12.0 0.21 10.5 LNET 1257.. 12.0 LNET 1265.. 7.0 LNET 1240.. SDN D100-07-32-LN12(1) 10 5 100.00 32.00 24.00 47.0 12.0 0.51 8.0 LNET 1245.. 8.5 LNET 1248.. 10.0 LNET 1255.. SDN D100-10-32-LN12(2) 10 5 100.00 32.00 24.00 47.0 12.0 0.50 10.5 LNET 1257.. 12.0 LNET 1265.. 7.0 LNET 1240.. SDN D125-07-40-LN12(1) 12 6 125.00 40.00 31.00 55.0 14.0 0.49 8.0 LNET 1245.. 8.5 LNET 1248.. 10.0 LNET 1255.. SDN D125-10-40-LN12(2) 12 6 125.00 40.00 31.00 55.0 14.0 0.60 10.5 LNET 1257.. 12.0 LNET 1265.. 10.0 LNET 1255.. SDN D160-10-40-LN12(2) 16 8 160.00 40.00 50.00 55.0 14.0 1.10 10.5 LNET 1257.. 12.0 LNET 1265.. 8.0 LNET 1245.. 8.5 LNET 1248.. SDN D200-08-50-LN12(3) 20 10 200.00 50.00 62.50 70.0 12.0 1.75 9.0 LNET 1250.. 10.0 LNET 1255.. 10.0 LNET 1255.. SDN D200-10-50-LN12(2) 20 10 200.00 50.00 62.50 69.0 14.0 1.90 10.5 LNET 1257.. 12.0 LNET 1265.. 8.0 LNET 1245.. 8.5 LNET 1248.. SDN D250-08-50-LN12(3) 26 13 250.00 60.00 84.00 87.0 12.0 3.06 9.0 LNET 1250.. 10.0 LNET 1255.. 8.0 LNET 1245.. 8.5 LNET 1248.. SDN D250-08-60-LN12(3) 26 13 250.00 60.00 80.30 84.0 12.0 2.22 9.0 LNET 1250.. 10.0 LNET 1255.. 10.0 LNET 1255.. SDN D250-10-50-LN12(2) 26 13 250.00 60.00 87.00 84.0 14.0 2.13 10.5 LNET 1257.. 12.0 LNET 1265.. 10.0 LNET 1255.. SDN D250-10-60-LN12(2) 26 13 250.00 60.00 80.00 84.0 14.0 2.83 10.5 LNET 1257.. 12.0 LNET 1265.. • Each tool is supplied with screws for the thinnest specified insert; verify use of the correct screw for the insert being used • For more than one insert option, slot width depends on the selected insert width • Gang-mill assembly SDN and left-hand SSB cutters feature two keyways • To reduce vibration, it is recommended to assemble gang-mills with alternating keyway position. • For user guide, see pages 426-432 (1) For a =7.0 use screw SR 14-500-L5.9 • For a =8.0 use screw SR 14-500-L6.5 • For a =8.5 use screw SR 14-500-L7.0 p p p (2) For a =10.0 and 10.5 use screw SR 14-500-L8.5 • For a =12.0 use screw SR 14-500-L10.0 p p (3) For a =8.0 and 8.5 use screw SR 14-500-L7.0 • For a =9.0 use screw SR 14-500-L8.0 • For a =10.0 use screw SR 14-500-L8.5 p p p (4) Cutting depth maximum (5) Number of inserts (or edges for solid tool) For inserts, see pages: LNET 12-TN (493) • LNET 12-TN-MM (493) (1) Designation Insert LNET 1240... SR 14-500-L5.9 T-15/51-BE LNET 1245 D=80-125 SR 14-500-L6.5 T-15/51-BE LNET 1245 D=160-250 SR 14-500-L7.0 T-15/51-BE LNET 1248... SR 14-500-L7.0 T-15/51-BE ratchet SDN-LN12 wrench key LNET 1250... SR 14-500-L8.0 T-15/51-BE LNET 1255... SR 14-500-L8.5 T-15/51-BE LNET 1257... SR 14-500-L8.5 T-15/51-BE LNET 1265... SR 14-500-L10 T-15/51-BE (1) Should be ordered separately, not supplied with the tool 403
