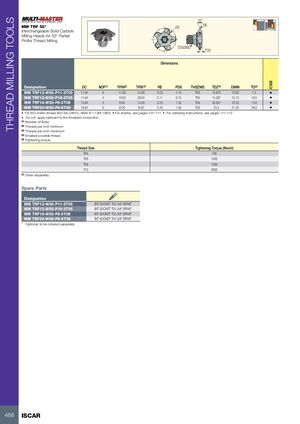

THREAD MILLING TOOLS 55˚ RE MM TRF 55° DC Interchangeable Solid Carbide Milling Heads for 55° Partial Profile Thread Milling THSZMS PDX Dimensions IC908 Designation DC NOF(1) TPIN(2) TPIX(3) RE PDX THSZMS TDZ(4) DMIN TQ(5) MM TRF12-W55-P11-5T05 11.94 5 11.00 14.00 0.23 1.15 T05 15.875 13.60 7.0 • MM TRF12-W55-P19-5T05 11.94 5 19.00 28.00 0.11 0.75 T05 14.287 13.10 10.0 • MM TRF16-W55-P8-5T06 15.94 5 8.00 14.00 0.23 1.55 T06 20.637 18.30 15.0 • MM TRF20-W55-P6-6T08 19.94 6 6.00 8.00 0.40 1.95 T08 25.4 21.30 28.0 • • For ISO metric thread (ISO 68, DIN13, ANSI B 1.13M-1983) • For shanks, see pages 101-111 • For clamping instructions, see pages 111-112 • Do not apply lubricant to the threaded connection. (1) Number of flutes (2) Threads per inch minimum (3) Threads per inch maximum (4) Smallest possible thread (5) Tightening torque Thread Size Tightening Torque (Nxcm) T05 700 T06 1000 T08 1500 T10 2800 (1) Order separately Spare Parts Designation MM TRF12-W55-P11-5T05 BIT SOCKET T20 3/8" DRIVE* MM TRF12-W55-P19-5T05 BIT SOCKET T20 3/8" DRIVE* MM TRF16-W55-P8-5T06 BIT SOCKET T25 3/8" DRIVE* MM TRF20-W55-P6-6T08 BIT SOCKET T40 3/8" DRIVE* * Optional, to be ordered separately 468 ISCAR
