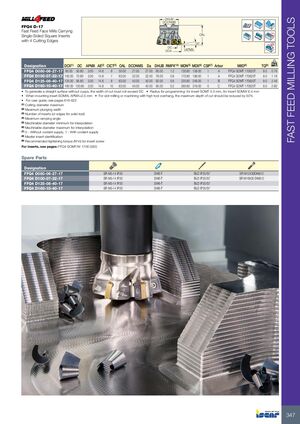

FAST FEED MILLING TOOLS DHUB DCONMS FFQ4 D-17 Fast Feed Face Mills Carrying Rd° Single-Sided Square Inserts OAL with 4 Cutting Edges 14° DC DCX APMX kg Designation DCX(1) DC APMX AE(2) CICT(3) OAL DCONMS Da DHUB RMPX°(4) MDN(5) MDX(6) CSP(7) Arbor MIID(8) TQ(9) FFQ4 D080-06-27-17 80.00 50.80 3.00 14.6 6 50.00 27.00 27.00 60.00 1.2 130.80 159.00 1 A FFQ4 SOMT 170625T 9.0 0.78 FFQ4 D100-07-32-17 100.00 70.80 3.00 14.6 7 63.00 32.00 32.00 78.00 0.8 170.80 199.00 1 A FFQ4 SOMT 170625T 9.0 1.18 FFQ4 D125-08-40-17 125.00 95.80 3.00 14.6 8 63.00 40.00 40.00 92.00 0.6 220.80 249.00 1 B FFQ4 SOMT 170625T 9.0 2.48 FFQ4 D160-10-40-17 160.00 130.80 3.00 14.6 10 63.00 40.00 40.00 95.00 0.2 290.80 319.00 0 C FFQ4 SOMT 170625T 9.0 2.90 • To generate a straight surface without cusps, the width of cut must not exceed DC • Radius for programming: for insert SOMT 5.5 mm, for insert SOMW 6.4 mm • When mounting insert SOMW, APMX=2.5 mm • For slot milling or machining with high tool overhang, the maximum depth of cut should be reduced by 50% • For user guide, see pages 616-622 (1) Cutting diameter maximum (2) Maximum plunging width (3) Number of inserts (or edges for solid tool) (4) Maximum ramping angle (5) Machinable diameter minimum for interpolation (6) Machinable diameter maximum for interpolation (7) 0 - Without coolant supply, 1 - With coolant supply (8) Master insert identification (9) Recommended tightening torque (N*m) for insert screw For inserts, see pages: FFQ4 SOMT/W 1706 (592) Spare Parts Designation FFQ4 D080-06-27-17 SR M5-14 IP20 SW6-T BLD IP20/S7 SR M12X30DIN912 FFQ4 D100-07-32-17 SR M5-14 IP20 SW6-T BLD IP20/S7 SR M16X30 DIN912 FFQ4 D125-08-40-17 SR M5-14 IP20 SW6-T BLD IP20/S7 FFQ4 D160-10-40-17 SR M5-14 IP20 SW6-T BLD IP20/S7 347
