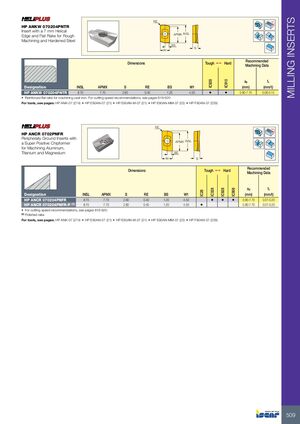

MILLING INSERTS RE Rd° HP ANKW 070204PNTR Insert with a 7 mm Helical APMX lNSL Edge and Flat Rake for Rough Machining and Hardened Steel BS S W1 Recommended Dimensions Tough 1 Hard Machining Data ap fz IC928 IC910 Designation INSL APMX S RE BS W1 (mm) (mm/t) HP ANKW 070204PNTR 8.70 7.70 2.60 0.40 1.20 4.50 • • 0.80-7.70 0.08-0.15 • Reinforced flat rake for machining cast iron. For cutting speed recommendations, see pages 616-620 For tools, see pages: HP ANK-07 (274) • HP E90AN-07 (21) • HP E90AN-M-07 (21) • HP E90AN-MM-07 (22) • HP F90AN-07 (229) RE Rd° HP ANCR 0702PNFR Peripherally Ground Inserts with APMX lNSL a Super Positive Chipformer for Machining Aluminum, Titanium and Magnesium BS W1 S Recommended Dimensions Tough 1 Hard Machining Data ap fz IC328 IC928 IC908 IC28 Designation INSL APMX S RE BS W1 (mm) (mm/t) HP ANCR 070204PNFR 8.70 7.70 2.60 0.40 1.20 4.50 • • • 0.80-7.70 0.07-0.20 HP ANCR 070204PNFR-P (1) 8.70 7.70 2.60 0.40 1.20 4.50 • 0.80-7.70 0.07-0.20 • For cutting speed recommendations, see pages 616-620 (1) Polished rake For tools, see pages: HP ANK-07 (274) • HP E90AN-07 (21) • HP E90AN-M-07 (21) • HP E90AN-MM-07 (22) • HP F90AN-07 (229) 509
