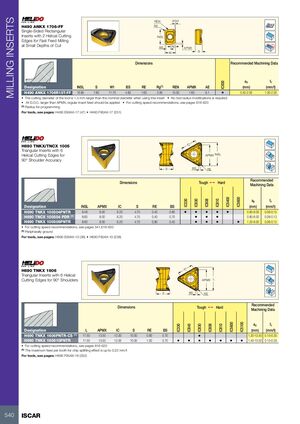

MILLING INSERTS REN 3º30’ H490 ANKX 1706-FF RE Single-Sided Rectangular Inserts with 2 Helical Cutting lNSL Edges for Fast Feed Milling at Small Depths of Cut BS AE Rd° APMX W1 S Dimensions Recommended Machining Data ap fz IC830 Designation INSL S W1 BS RE Rg(1) REN APMX AE (mm) (mm/t) H490 ANKX 1706R15T-FF 16.80 7.80 11.70 4.60 1.60 2.85 15.00 1.60 6.1 • 0.50-2.00 1.00-2.00 • The cutting diameter of the tool is 1.5 mm larger than the nominal diameter when using this insert • No tool radius modifications is required • At D.O.C. larger than APMX, regular insert feed should be applied • For cutting speed recommendations, see pages 616-620 (1) Radius for programming For tools, see pages: H490 E90AX-17 (47) • H490 F90AX-17 (251) IC H690 TNKX/TNCX 1005 2 Triangular Inserts with 6 APMX INSL 1 Helical Cutting Edges for 90° Shoulder Accuracy 3 S BS RE PNTR/PDR Recommended Dimensions Tough 1 Hard Machining Data IC5400 IC5600 ap fz IC330 IC830 IC808 IC810 Designation INSL APMX IC S RE BS (mm) (mm/t) H690 TNKX 100504PNTR 8.48 8.00 6.20 4.70 0.40 0.80 • • • • • 0.80-8.00 0.08-0.15 H690 TNCX 100504 PDR (1) 8.60 8.00 6.20 4.70 0.40 0.70 • • • 0.80-8.00 0.08-0.13 H690 TNKX 100508PNTR 8.60 8.00 6.20 4.70 0.80 0.40 • • • • 1.20-8.00 0.08-0.15 • For cutting speed recommendations, see pages 541,616-620 (1) Peripherally ground For tools, see pages: H690 E90AX-10 (39) • H690 F90AX-10 (238) IC H690 TNKX 1606 2 Triangular Inserts with 6 Helical APMX L 1 Cutting Edges for 90° Shoulders 3 S BS RE Recommended Dimensions Tough 1 Hard Machining Data ap fz IC5600 IC5100 IC330 IC845 IC830 IC808 IC810 Designation L APMX IC S RE BS (mm) (mm/t) H690 TNKX 1606PNTR-CS (1) 17.50 13.50 12.00 10.00 0.80 0.70 • 1.20-13.50 0.15-0.30 H690 TNKX 160610PNTR 17.50 13.50 12.00 10.00 1.00 0.70 • • • • • • • 1.40-13.50 0.15-0.30 • For cutting speed recommendations, see pages 616-620 (1) The maximum feed per tooth for chip splitting effect is up to 0.22 mm/t For tools, see pages: H690 F90AX-16 (252) 540 ISCAR
