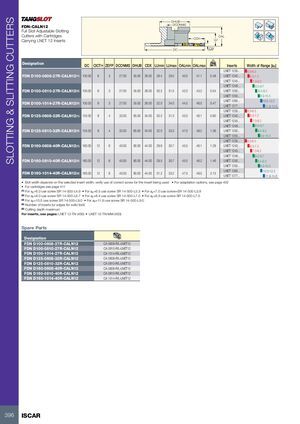

Фрезерные инструменты Iscar 2026 - страница 398

SLOTTING & SLITTING CUTTERS DHUB DCONMS FDN-CALN12 Full Slot Adjustable Slotting Cutters with Cartridges OAL CDX LU Carrying LNET 12 Inserts DC CW Designation kg DC CICT(4) ZEFP DCONMS DHUB CDX LUmin LUmax OALmin OALmax Inserts Width of Range [ap] LNET 1235... 6.0-6.5 FDN D100-0608-27R-CALN12(1) 100.00 6 3 27.00 55.00 26.00 28.4 29.5 40.0 41.1 0.48 LNET 1240... 6.5-7.2 LNET 1245... 7.0-8.2 LNET 1248... 8.0-8.7 FDN D100-0810-27R-CALN12(2) 100.00 6 3 27.00 55.00 26.00 30.2 31.5 42.0 43.2 0.54 LNET 1250... 8.4-9.2 LNET 1255... 8.9-10.5 LNET 1265... 10.5-12.2 FDN D100-1014-27R-CALN12(3) 100.00 6 3 27.00 55.00 26.00 32.0 34.0 44.5 46.5 0.47 LNET 1277... 11.9-14.6 LNET 1235... 6.0-6.5 FDN D125-0608-32R-CALN12(1) 125.00 8 4 32.00 65.00 34.00 30.2 31.3 45.0 46.1 0.80 LNET 1240... 6.5-7.2 LNET 1245... 7.0-8.2 LNET 1248... 8.0-8.7 FDN D125-0810-32R-CALN12(2) 125.00 8 4 32.00 65.00 34.00 32.0 33.3 47.0 48.2 1.36 LNET 1250... 8.4-9.2 LNET 1255... 8.9-10.5 LNET 1235... 6.0-6.5 FDN D160-0608-40R-CALN12(1) 160.00 12 6 40.00 80.00 44.00 29.6 30.7 45.0 46.1 1.29 LNET 1240... 6.5-7.2 LNET 1245... 7.0-8.2 LNET 1248... 8.0-8.7 FDN D160-0810-40R-CALN12(2) 160.00 12 6 40.00 80.00 44.00 29.5 30.7 45.0 46.2 1.46 LNET 1250... 8.4-9.2 LNET 1255... 8.9-10.5 LNET 1265... 10.5-12.2 FDN D160-1014-40R-CALN12(3) 160.00 12 6 40.00 80.00 44.00 31.2 33.2 47.5 49.5 2.15 LNET 1277... 11.9-14.6 • Slot width depends on the selected insert width; verify use of correct screw for the insert being used • For adaptation options, see page 432 • For cartridges see page 411 (1) For a =6.0 use screw SR 14-500-L4.9 • For a =6.5 use screw SR 14-500-L5.3 • For a =7.0 use screw=SR 14-500-L5.9 p p p (2) For a =8.0 use screw SR 14-500-L6.7 • For a =8.4 use screw SR 14-500-L7.0 • For a =8.9 use screw SR 14-500-L7.5 p p p (3) For a =10.5 use screw SR 14-500-L9.0 • For a =11.9 use screw SR 14-500-L9.0 p p (4) Number of inserts (or edges for solid tool) (5) Cutting depth maximum For inserts, see pages: LNET 12-TN (493) • LNET 12-TN-MM (493) Spare Parts Designation FDN D100-0608-27R-CALN12 CA 0608-R/L-LNET12 FDN D100-0810-27R-CALN12 CA 0810-R/L-LNET12 FDN D100-1014-27R-CALN12 CA 1014-R/L-LNET12 FDN D125-0608-32R-CALN12 CA 0608-R/L-LNET12 FDN D125-0810-32R-CALN12 CA 0810-R/L-LNET12 FDN D160-0608-40R-CALN12 CA 0608-R/L-LNET12 FDN D160-0810-40R-CALN12 CA 0810-R/L-LNET12 FDN D160-1014-40R-CALN12 CA 1014-R/L-LNET12 396 ISCAR
