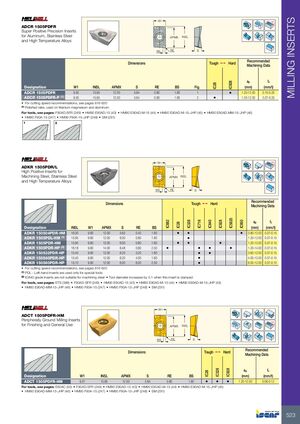

MILLING INSERTS W1 Rd° ADCR 1505PDFR Super Positive Precision Inserts for Aluminum, Stainless Steel APMX INSL and High Temperature Alloys BS RE S Recommended Dimensions Tough 1 Hard Machining Data ap fz IC928 IC28 Designation W1 INSL APMX S RE BS Fig. (mm) (mm/t) ADCR 1505PDFR 9.50 15.95 12.00 5.64 0.80 1.60 1 • 1.20-12.00 0.15-0.25 ADCR 1505PDFR-P (1) 9.50 15.95 12.00 5.64 0.80 1.60 2 • 1.20-12.00 0.07-0.25 • For cutting speed recommendations, see pages 616-620 (1) Polished rake, used on titanium magnesium and aluminum For tools, see pages: F90AD-SFR (249) • HM90 E90AD-15 (43) • HM90 E90AD-M-15 (44) • HM90 E90AD-M-15-JHP (45) • HM90 E90AD-MM-15-JHP (46) • HM90 F90A-15 (247) • HM90 F90A-15-JHP (248) • SM (291) 1 2 W1 Rd° ADKR 1505PDR/L High Positive Inserts for Machining Steel, Stainless Steel APMX INSL and High Temperature Alloys BS RE S Recommended Dimensions Tough 1 Hard Machining Data IC5820 ap fz IC882 IC328 IC716 IC840 IC928 IC950 IC28 Designation INSL W1 APMX S RE BS (mm) (mm/t) ADKR 150504PDR-HM 16.30 9.60 12.00 5.63 0.40 1.60 • • • 0.80-12.00 0.07-0.15 ADKR 1505PDL-HM (1) 15.95 9.60 12.00 6.00 0.80 1.60 • 1.20-12.00 0.07-0.15 ADKR 1505PDR-HM 15.95 9.60 12.00 6.00 0.80 1.60 • • • 1.20-12.00 0.07-0.15 ADKR 1505PDR-HP (2) 16.18 9.60 14.00 6.48 0.80 2.50 • • • • 1.20-14.00 0.07-0.15 ADKR 150532PDR-HP 15.40 9.60 12.00 6.20 3.20 1.60 • • 3.60-12.00 0.07-0.15 ADKR 150540PDR-HP 15.40 9.60 12.00 6.20 4.00 1.60 • 4.00-12.00 0.07-0.15 ADKR 150560PDR-HP 15.10 9.60 12.00 6.00 6.00 2.50 • 6.00-12.00 0.07-0.15 • For cutting speed recommendations, see pages 616-620 (1) PDL - Left-hand inserts are used only for special tools (2) IC840 grade inserts are not suitable for machining steel • Tool diameter increases by 0.1 when this insert is clamped For tools, see pages: ETS (389) • F90AD-SFR (249) • HM90 E90AD-15 (43) • HM90 E90AD-M-15 (44) • HM90 E90AD-M-15-JHP (45) • HM90 E90AD-MM-15-JHP (46) • HM90 F90A-15 (247) • HM90 F90A-15-JHP (248) • SM (291) W1 ADCT 1505PDFR-HM Peripherally Ground Milling Inserts Rd° for Finishing and General Use APMX INSL BS RE S Recommended Dimensions Tough 1 Hard Machining Data ap fz IC328 IC928 IC28 Designation W1 INSL APMX S RE BS (mm) (mm/t) ADCT 1505PDFR-HM 9.57 15.65 12.00 5.64 0.80 1.60 • • • 1.20-12.00 0.06-0.12 For tools, see pages: E90AC (50) • F90AD-SFR (249) • HM90 E90AD-15 (43) • HM90 E90AD-M-15 (44) • HM90 E90AD-M-15-JHP (45) • HM90 E90AD-MM-15-JHP (46) • HM90 F90A-15 (247) • HM90 F90A-15-JHP (248) • SM (291) 523
