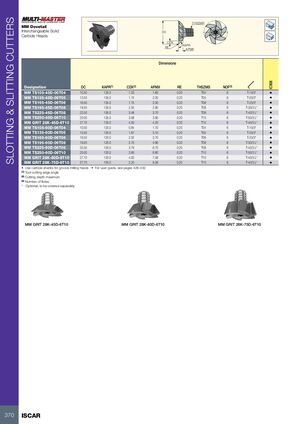

Фрезерные инструменты Iscar 2026 - страница 372

SLOTTING & SLITTING CUTTERS THSZMS MM Dovetail Interchangeable Solid DC Carbide Heads CDX KAPR RE APMX Dimensions IC908 Designation DC KAPR(1) CDX(2) APMX RE THSZMS NOF(3) MM TS105-45D-06T04 10.50 135.0 1.33 1.60 0.20 T04 6 T-15/3* • MM TS135-45D-06T05 13.50 135.0 1.75 2.00 0.20 T05 6 T-20/3* • MM TS165-45D-06T06 16.50 135.0 1.75 2.00 0.20 T06 6 T-25/3* • MM TS195-45D-06T08 19.50 135.0 2.55 2.80 0.20 T08 6 T-30/3 L* • MM TS225-45D-06T08 22.50 135.0 3.48 3.70 0.20 T08 6 T-40/3 L* • MM TS250-45D-06T10 25.00 135.0 3.68 3.90 0.20 T10 6 T-50/3 L* • MM GRIT 28K-45D-6T10 27.70 135.0 4.00 4.20 0.20 T10 6 T-40/3 L* • MM TS105-60D-06T04 10.50 120.0 0.84 1.70 0.20 T04 6 T-15/3* • MM TS135-60D-06T05 13.50 120.0 1.67 3.10 0.20 T05 6 T-20/3* • MM TS165-60D-06T06 16.50 120.0 2.02 3.70 0.20 T06 6 T-25/3* • MM TS195-60D-06T08 19.50 120.0 2.70 4.80 0.20 T08 6 T-30/3 L* • MM TS225-60D-06T08 22.50 120.0 3.79 6.70 0.20 T08 6 T-40/3 L* • MM TS250-60D-06T10 25.00 120.0 3.85 6.80 0.20 T10 6 T-50/3 L* • MM GRIT 28K-60D-6T10 27.70 120.0 4.00 7.08 0.20 T10 6 T-40/3 L* • MM GRIT 28K-75D-6T10 27.70 105.0 2.20 8.39 0.20 T10 6 T-40/3 L* • • Use carbide shanks for groove milling heads • For user guide, see pages 426-432 (1) Tool cutting edge angle (2) Cutting depth maximum (3) Number of flutes * Optional, to be ordered separately MM GRIT 28K-45D-6T10 MM GRIT 28K-60D-6T10 MM GRIT 28K-75D-6T10 370 ISCAR
