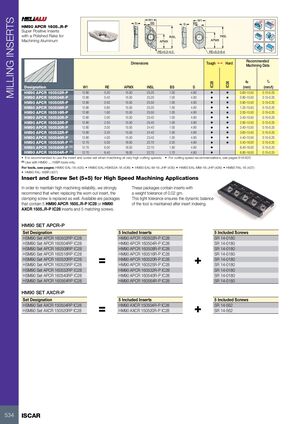

MILLING INSERTS Rd° HM90 APCR 1605..R-P Super Positive Inserts with a Polished Rake for Machining Aluminum Recommended Dimensions Tough 1 Hard Machining Data ap fz IC28 IC08 Designation W1 RE APMX INSL BS S (mm) (mm/t) HM90 APCR 160502R-P 12.80 0.20 15.50 25.20 1.00 4.80 • • 0.60-15.50 0.15-0.25 HM90 APCR 160504R-P 12.80 0.40 15.50 25.20 1.00 4.80 • • 0.80-15.50 0.15-0.25 HM90 APCR 160505R-P 12.80 0.50 15.50 25.50 1.00 4.80 • • 0.90-15.50 0.15-0.25 HM90 APCR 160508R-P 12.80 0.80 15.50 25.20 1.00 4.80 • • 1.20-15.50 0.15-0.25 HM90 APCR 160516R-P 12.80 1.60 15.50 25.50 1.00 4.80 • • 2.00-15.50 0.15-0.25 HM90 APCR 160520R-P 12.80 2.00 15.50 25.40 1.00 4.80 • • 2.40-15.50 0.15-0.25 HM90 APCR 160525R-P 12.80 2.50 15.50 25.40 1.00 4.80 • • 2.90-15.50 0.15-0.25 HM90 APCR 160530R-P 12.80 3.00 15.50 24.40 1.00 4.80 • • 3.40-15.50 0.15-0.25 HM90 APCR 160532R-P 12.80 3.20 15.50 24.40 1.00 4.80 • • 3.60-15.50 0.15-0.25 HM90 APCR 160540R-P 12.80 4.00 15.50 23.40 1.00 4.80 • • 4.40-15.50 0.15-0.25 HM90 APCR 160550R-P (1) 12.70 5.00 16.00 22.70 2.20 4.80 • • 5.40-16.00 0.15-0.25 HM90 APCR 160560R-P (1) 12.70 6.00 16.00 22.70 1.90 4.80 • 6.40-16.00 0.15-0.25 HM90 APCR 160564R-P (1) 12.70 6.40 16.00 22.70 1.70 4.80 • 6.80-16.00 0.15-0.25 • It is recommended to use the insert and screw set when machining at very high cutting speeds. • For cutting speed recommendations, see pages 616-620 (1) Use with HM90 ....16BR tools only. For tools, see pages: HM90 EAL-16 (435) • HM90 EAL-HSK63A-16 (436) • HM90 EAL-M-16-JHP (435) • HM90 EAL-MM-16-JHP (436) • HM90 FAL-16 (437) • HM90 FAL-16BR (437) Insert and Screw Set (5+5) for High Speed Machining Applications In order to maintain high machining reliability, we strongly These packages contain inserts with recommend that when replacing the worn out insert, the a weight tolerance of 0.02 gm. clamping screw is replaced as well. Available are packages This tight tolerance ensures the dynamic balance that contain 5 HM90 APCR 1605..R-P IC28 or HM90 of the tool is maintained after insert indexing. AXCR 1505..R-P IC28 inserts and 5 matching screws. HM90 SET APCR-P Set Designation 5 Included Inserts 5 Included Screws HSM90 Set APCR 160502RP IC28 HM90 APCR 160502R-P IC28 SR 14-0180 HSM90 Set APCR 160504RP IC28 HM90 APCR 160504R-P IC28 SR 14-0180 HSM90 Set APCR 160508RP IC28 HM90 APCR 160508R-P IC28 SR 14-0180 HSM90 Set APCR 160516RP IC28 HM90 APCR 160516R-P IC28 SR 14-0180 HSM90 Set APCR 160520RP IC28 HSM90 Set APCR 160525RP IC28 = HM90 APCR 160520R-P IC28 HM90 APCR 160525R-P IC28 + SR 14-0180 SR 14-0180 HSM90 Set APCR 160532RP IC28 HM90 APCR 160532R-P IC28 SR 14-0180 HSM90 Set APCR 160540RP IC28 HM90 APCR 160540R-P IC28 SR 14-0180 HSM90 Set APCR 160564RP IC28 HM90 APCR 160564R-P IC28 SR 14-0180 HM90 SET AXCR-P Set Designation 5 Included Inserts 5 Included Screws HSM90 Set AXCR 150504RP IC28 HSM90 Set AXCR 150520RP IC28 = HM90 AXCR 150504R-P IC28 HM90 AXCR 150520R-P IC28 + SR 14-562 SR 14-562 534 ISCAR
