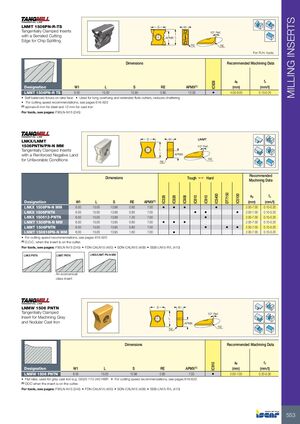

MILLING INSERTS LNMT 1506PN-R-TS S W1 Tangentially Clamped Inserts 10° Ref. with a Serrated Cutting APMX L Edge for Chip Splitting RE RE For R.H. tools Dimensions Recommended Machining Data ap fz IC928 Designation W1 L S RE APMX(1) (mm) (mm/t) LNMT 1506PN-R TS 6.00 15.00 13.90 0.80 12.00 • 4.00-9.00 0.10-0.20 • Self balanced forces on rake face • Used for long overhang and extended flute cutters, reduces chattering • For cutting speed recommendations, see pages 616-620 (1) apmax=8 mm for steel and 12 mm for cast iron For tools, see pages: F90LN-N15 (245) S W1 LNMT LNKX/LNMT 1506PNTN/PN-N MM 10° Ref. Tangentially Clamped Inserts L with a Reinforced Negative Land APMX for Unfavorable Conditions RE RE Recommended Dimensions Tough 1 Hard Machining Data DT7150 ap fz IC5400 IC5100 IC328 IC928 IC908 IC810 IC910 Designation W1 L S RE APMX(1) (mm) (mm/t) LNKX 1506PN-N MM 6.00 15.00 13.88 0.80 7.00 • • • • 2.00-7.00 0.10-0.20 LNKX 1506PNTN 6.00 15.00 13.88 0.80 7.00 • • • 2.00-7.00 0.10-0.20 LNKX 150612-PNTN 6.00 15.00 13.88 1.20 7.00 • 2.00-7.00 0.10-0.20 LNMT 1506PN-N MM 6.00 15.00 13.95 0.80 7.00 • • • 2.00-7.00 0.10-0.20 LNMT 1506PNTN 6.00 15.00 13.95 0.80 7.00 • • • 2.00-7.00 0.10-0.20 LNMT 150616PN-N MM 6.00 15.00 13.95 1.60 7.00 • 2.00-7.00 0.10-0.20 • For cutting speed recommendations, see pages 616-620 (1) D.O.C. when the insert is on the cutter. For tools, see pages: F90LN-N15 (245) • FDN-CALN15 (400) • SDN-CALN15 (409) • SSB-LN15-R/L (410) LNKX PNTN LNMT PNTN LNKX/LNMT PN-N-MM An economical class insert LNMW 1506 PNTN S W1 Tangentially Clamped 10° Ref. Insert for Machining Gray L and Nodular Cast Iron APMX RE RE Dimensions Recommended Machining Data ap fz IC910 Designation W1 L S RE APMX(1) (mm) (mm/t) LNMW 1506 PNTN 6.00 15.00 13.98 0.80 7.00 • 2.00-7.00 0.20-0.30 • Flat rake, used for grey cast iron e.g. GG25 170-240 HBR • For cutting speed recommendations, see pages 616-620 (1) DOC when the insert is on the cutter. For tools, see pages: F90LN-N15 (245) • FDN-CALN15 (400) • SDN-CALN15 (409) • SSB-LN15-R/L (410) 553
