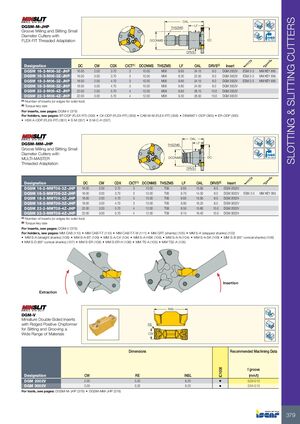

SLOTTING & SLITTING CUTTERS OAL DGSM-M-JHP LF THSZMS Groove Milling and Slitting Small Diameter Cutters with FLEX-FIT Threaded Adaptation DCONMS DC Bar Max DRVS Designation DC CW CDX CICT(1) DCONMS THSZMS LF OAL DRVS(2) Insert DGSM 16-2-M06-3Z-JHP 16.00 2.00 3.70 3 10.00 M06 9.65 24.15 8.0 DGM 2002V ESM 2-3 MM KEY 8X5 DGSM 16-3-M06-3Z-JHP 16.00 3.00 3.70 3 10.00 M06 8.30 22.50 8.0 DGM 3002V ESM 2-3 MM KEY 8X5 DGSM 18-2-M06-3Z-JHP 18.00 2.00 4.70 3 10.00 M06 9.65 24.15 8.0 DGM 2002V ESM 2-3 MM KEY 8X5 DGSM 18-3-M06-3Z-JHP 18.00 3.00 4.70 3 10.00 M06 9.80 24.00 8.0 DGM 3002V DGSM 22-2-M08-4Z-JHP 22.00 2.00 5.70 4 12.00 M08 8.65 26.15 10.0 DGM 2002V DGSM 22-3-M08-4Z-JHP 22.00 3.00 5.70 4 12.00 M08 9.30 26.50 10.0 DGM 3002V (1) Number of inserts (or edges for solid tool) (2) Torque key size For inserts, see pages: DGM-V (379) For holders, see pages: BT-ODP (FLEX-FIT) (359) • C#-ODP (FLEX-FIT) (359) • CAB M-M (FLEX-FIT) (358) • DIN69871-ODP (360) • ER-ODP (360) • HSK A-ODP (FLEX-FIT) (361) • S M (357) • S M-C-H (357) OAL DGSM-MM-JHP LF THSZMS Groove Milling and Slitting Small Diameter Cutters with MULTI-MASTER DCONMS DC Bar Max Threaded Adaptation DRVS Designation DC CW CDX CICT(1) DCONMS THSZMS LF OAL DRVS(2) Insert DGSM 16-2-MMT06-3Z-JHP 16.00 2.00 3.70 3 10.00 T06 9.65 15.95 8.0 DGM 2002V DGSM 16-3-MMT06-3Z-JHP 16.00 3.00 3.70 3 10.00 T06 9.70 14.30 8.0 DGM 3002V ESM 2-3 MM KEY 8X5 DGSM 18-2-MMT06-3Z-JHP 18.00 2.00 4.70 3 10.00 T06 9.65 15.95 8.0 DGM 2002V DGSM 18-3-MMT06-3Z-JHP 18.00 3.00 4.70 3 10.00 T06 9.90 16.25 8.0 DGM 3002V DGSM 22-2-MMT08-4Z-JHP 22.00 2.00 5.70 4 12.00 T08 8.50 15.80 10.0 DGM 2002V DGSM 22-3-MMT08-4Z-JHP 22.00 3.00 5.70 4 12.00 T08 9.15 16.40 10.0 DGM 3002V (1) Number of inserts (or edges for solid tool) (2) Torque key size For inserts, see pages: DGM-V (379) For holders, see pages: MM CAB (110) • MM CAB-T-T (110) • MM CAB-T-T-W (111) • MM GRT (shanks) (105) • MM S-A (stepped shanks) (102) • MM S-A (straight shanks) (106) • MM S-A-BT (109) • MM S-A-C# (104) • MM S-A-HSK (109) • MM S-A-N (104) • MM S-A-SK (109) • MM S-B (85° conical shanks) (106) • MM S-D (89° conical shanks) (107) • MM S-ER (108) • MM S-ER-H (108) • MM TS-A (105) • MM TS2-A (105) Insertion Extraction INSL DGM-V Miniature Double-Sided Inserts with Ridged Positive Chipformer RE for Slitting and Grooving a Wide Range of Materials CW Dimensions Recommended Machining Data f groove IC1008 Designation CW RE INSL (mm/t) DGM 2002V 2.00 0.20 6.20 • 0.03-0.10 DGM 3002V 3.00 0.20 6.20 • 0.04-0.15 For tools, see pages: DGSM-M-JHP (379) • DGSM-MM-JHP (379) 379
