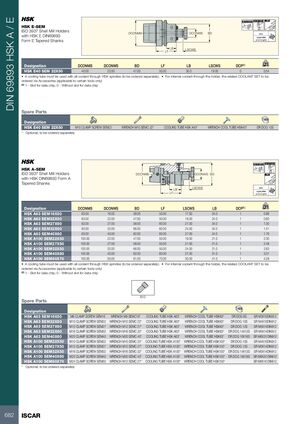

DIN 69893 HSK A / E √N5 A 0.005 A 58-60 HRc HSK E-SEM ISO 3937 Shell Mill Holders DCONMS DCONWS BD G2.5 with HSK E DIN69893 15,000 RPM Form E Tapered Shanks or U<1.0 gmm LB LSCWS LF kg Designation DCONMS DCONWS BD LF LB LSCWS DCP(1) HSK E40 SEM 22X50 40.00 22.00 47.00 50.00 30.0 19.00 0 0.54 • A cooling tube must be used with all coolant through HSK spindles (to be ordered separately). • For internal coolant through the holder, the related COOLANT SET to be ordered via Accessories (applicable to certain tools only) (1) 1 - Slot for data chip, 0 - Without slot for data chip Spare Parts Designation HSK E40 SEM 22X50 M10 CLAMP SCREW SEM22 WRENCH M10 SEMC 22* COOLING TUBE HSK A40* WRENCH COOL TUBE HSK40* DR.DOG 10S * Optional, to be ordered separately A 0.005 A 58-60 HRc HSK A-SEM ISO 3937 Shell Mill Holders DCONMS DCONWS BD √N5 with HSK DIN69893 Form A Tapered Shanks LB LSCWS G2.5 15,000 RPM LF or U<1.0 gmm kg Designation DCONMS DCONWS BD LF LSCWS LB DCP(1) HSK A63 SEM16X50 63.00 16.00 38.00 50.00 17.00 24.0 1 0.86 HSK A63 SEM22X50 63.00 22.00 47.00 50.00 19.00 24.0 1 0.60 HSK A63 SEM27X60 63.00 27.00 58.00 60.00 21.00 34.0 1 1.30 HSK A63 SEM32X60 63.00 32.00 66.00 60.00 24.00 34.0 1 1.41 HSK A63 SEM40X60 63.00 40.00 82.00 60.00 27.00 24.0 1 1.76 HSK A100 SEM22X50 100.00 22.00 47.00 50.00 19.00 21.0 1 2.30 HSK A100 SEM27X50 100.00 27.00 58.00 50.00 21.00 21.0 1 2.48 HSK A100 SEM32X50 100.00 32.00 66.00 50.00 24.00 21.0 1 2.63 HSK A100 SEM40X60 100.00 40.00 82.00 60.00 27.00 31.0 1 3.37 HSK A100 SEM50X70 100.00 50.00 81.00 70.00 30.00 41.0 1 4.29 • A cooling tube must be used with all coolant through HSK spindles (to be ordered separately). • For internal coolant through the holder, the related COOLANT SET to be ordered via Accessories (applicable to certain tools only) (1) 1 - Slot for data chip, 0 - Without slot for data chip 810 Spare Parts Designation HSK A63 SEM16X50 M8 CLAMP SCREW SEM16 WRENCH M8 SEMC16* COOLING TUBE HSK A63* WRENCH COOL TUBE HSK63* DR.DOG 8S SR M3X10DIN912 HSK A63 SEM22X50 M10 CLAMP SCREW SEM22 WRENCH M10 SEMC 22* COOLING TUBE HSK A63* WRENCH COOL TUBE HSK63* DR.DOG 10S SR M4X10DIN912 HSK A63 SEM27X60 M12 CLAMP SCREW SEM27 WRENCH M12 SEMC 27* COOLING TUBE HSK A63* WRENCH COOL TUBE HSK63* DR.DOG 12S SR M5X14DIN912 HSK A63 SEM32X60 M16 CLAMP SCREW SEM32 WRENCH M16 SEMC 32* COOLING TUBE HSK A63* WRENCH COOL TUBE HSK63* DR.DOG 14X13S SR M5X14DIN912 HSK A63 SEM40X60 M20 CLAMP SCREW SEM40 WRENCH M20 SEMC 40* COOLING TUBE HSK A63* WRENCH COOL TUBE HSK63* DR.DOG 16X18S SR M6X20 DIN912 HSK A100 SEM22X50 M10 CLAMP SCREW SEM22 WRENCH M10 SEMC 22* COOLING TUBE HSK A100* WRENCH COOL TUBE HSK100* DR.DOG 10S SR M4X10DIN912 HSK A100 SEM27X50 M12 CLAMP SCREW SEM27 WRENCH M12 SEMC 27* COOLING TUBE HSK A100* WRENCH COOL TUBE HSK100* DR.DOG 12S SR M5X14DIN912 HSK A100 SEM32X50 M16 CLAMP SCREW SEM32 WRENCH M16 SEMC 32* COOLING TUBE HSK A100* WRENCH COOL TUBE HSK100* DR.DOG 14X13S SR M5X14DIN912 HSK A100 SEM40X60 M20 CLAMP SCREW SEM40 WRENCH M20 SEMC 40* COOLING TUBE HSK A100* WRENCH COOL TUBE HSK100* DR.DOG 16X18S SR M6X20 DIN912 HSK A100 SEM50X70 M24 CLAMP SCREW SEM50 WRENCH M12 SEMC 27* COOLING TUBE HSK A100* WRENCH COOL TUBE HSK100* SR M6X16 DIN912 * Optional, to be ordered separately 682 ISCAR
