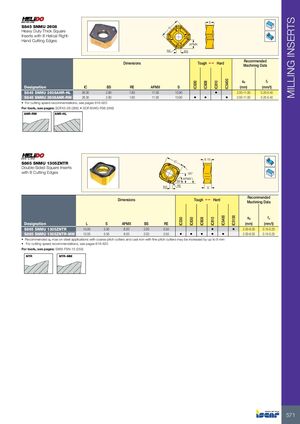

MILLING INSERTS S S845 SNMU 2608 IC Heavy Duty Thick Square Inserts with 8 Helical Right- Hand Cutting Edges APMX RE BS Recommended Dimensions Tough 1 Hard Machining Data ap fz IC5400 IC830 IC808 IC810 Designation IC BS RE APMX S (mm) (mm/t) S845 SNMU 2608ANR-HL 26.30 2.60 1.60 11.00 10.90 • 2.00-11.00 0.25-0.40 S845 SNMU 2608ANR-RM 26.30 2.60 1.60 11.00 10.90 • • • 2.00-11.00 0.25-0.40 • For cutting speed recommendations, see pages 616-620 For tools, see pages: SOF45-26 (266) • SOF45WG-R26 (266) ANR-RM ANR-HL 6.15 IC S865 SNMU 1305ZNTR Double-Sided Square Inserts with 8 Cutting Edges 65° APMX 38° BS RE S Recommended Dimensions Tough 1 Hard Machining Data ap fz IC5400 IC5100 IC330 IC830 IC808 IC810 Designation L S APMX BS RE (mm) (mm/t) S865 SNMU 1305ZNTR 13.00 5.50 8.00 2.00 0.50 • • 2.00-6.00 0.15-0.25 S865 SNMU 1305ZNTR-MM 13.00 5.50 8.00 2.00 0.50 • • • • • 2.00-6.00 0.15-0.25 • Recommended ap max on steel applications with coarse pitch cutters and cast iron with fine pitch cutters may be increased by up to 8 mm • For cutting speed recommendations, see pages 616-620 For tools, see pages: S865 FSN-13 (255) NTR NTR-MM 571
