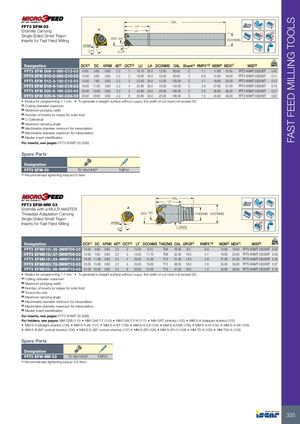

FAST FEED MILLING TOOLS OAL FFT3 EFM-03 LH A Endmills Carrying LU Rd° Single-Sided Small Trigon DCX DC DCONMS Inserts for Fast Feed Milling APMX 17° A kg Designation DCX(1) DC APMX AE(2) CICT(3) LU LH DCONMS OAL Shank(4) RMPX°(5) MDN(6) MDX(7) MIID(8) FFT3 EFM D08-1-080-C12-03 8.00 3.60 0.60 2.2 1 15.70 20.0 12.00 80.00 C 1.1 11.60 15.00 FFT3 WXMT 030206T 0.00 FFT3 EFM D10-2-080-C10-03 10.00 5.60 0.60 2.2 2 18.00 20.0 10.00 80.00 C 6.9 15.60 19.00 FFT3 WXMT 030206T 0.11 FFT3 EFM D12-3-120-C12-03 12.00 7.60 0.60 2.2 3 23.00 25.0 12.00 120.00 C 4.7 19.60 23.00 FFT3 WXMT 030206T 0.10 FFT3 EFM D16-4-140-C16-03 16.00 11.60 0.60 2.2 4 32.80 35.0 16.00 140.00 C 2.9 27.60 31.00 FFT3 WXMT 030206T 0.18 FFT3 EFM D20-5-160-C20-03 20.00 15.60 0.60 2.2 5 40.80 43.0 20.00 160.00 C 2.0 35.60 39.00 FFT3 WXMT 030206T 0.37 FFT3 EFM D25-6-180-C25-03 25.00 20.60 0.60 2.2 6 50.80 53.0 25.00 180.00 C 1.5 45.60 49.00 FFT3 WXMT 030206T 0.62 • Radius for programming 1.1 mm • To generate a straight surface without cusps, the width of cut must not exceed DC (1) Cutting diameter maximum (2) Maximum plunging width (3) Number of inserts (or edges for solid tool) (4) C-Cylindrical (5) Maximum ramping angle (6) Machinable diameter minimum for interpolation (7) Machinable diameter maximum for interpolation (8) Master insert identification For inserts, see pages: FFT3 WXMT 03 (596) Spare Parts Designation FFT3 EFM-03 TS 18041I/HG(a) T-6IP/51 (a) Recommended tightening torque:0.5 Nxm OAL LF FFT3 EFM-MM 03 A Endmills with a MULTI-MASTER Rd° Threaded Adaptation Carrying DCX DC THSZMS DCONMS Single-Sided Small Trigon Inserts for Fast Feed Milling APMX DRVS 17° kg Designation DCX(1) DC APMX AE(2) CICT(3) LF DCONMS THSZMS OAL DRVS(4) RMPX°(5) MDN(6) MDX(7) MIID(8) FFT3 EFMD10/.39-2MMT06-03 10.00 5.60 0.60 2.2 2 10.00 9.70 T06 16.30 8.0 6.9 15.60 19.00 FFT3 WXMT 030206T 0.02 FFT3 EFMD12/.47-3MMT08-03 12.00 7.60 0.60 2.2 3 15.00 11.70 T08 22.50 10.0 4.7 19.60 23.00 FFT3 WXMT 030206T 0.03 FFT3 EFMD16/.63-4MMT10-03 16.00 11.60 0.60 2.2 4 20.00 15.30 T10 31.30 13.0 2.9 27.60 31.00 FFT3 WXMT 030206T 0.05 FFT3 EFMD20/.78-5MMT12-03 20.00 15.60 0.60 2.2 5 25.00 19.00 T12 38.30 16.0 2.0 35.60 39.00 FFT3 WXMT 030206T 0.07 FFT3 EFMD25/.98-6MMT15-03 25.00 20.60 0.60 2.2 6 30.00 24.00 T15 47.00 20.0 1.5 45.60 49.00 FFT3 WXMT 030206T 0.16 • Radius for programming 1.1 mm • To generate a straight surface without cusps, the width of cut must not exceed DC (1) Cutting diameter maximum (2) Maximum plunging width (3) Number of inserts (or edges for solid tool) (4) Torque key size (5) Maximum ramping angle (6) Machinable diameter minimum for interpolation (7) Machinable diameter maximum for interpolation (8) Master insert identification For inserts, see pages: FFT3 WXMT 03 (596) For holders, see pages: MM CAB (110) • MM CAB-T-T (110) • MM CAB-T-T-W (111) • MM GRT (shanks) (105) • MM S-A (stepped shanks) (102) • MM S-A (straight shanks) (106) • MM S-A-AV (101) • MM S-A-BT (109) • MM S-A-C# (104) • MM S-A-HSK (109) • MM S-A-N (104) • MM S-A-SK (109) • MM S-B (85° conical shanks) (106) • MM S-D (89° conical shanks) (107) • MM S-ER (108) • MM S-ER-H (108) • MM TS-A (105) • MM TS2-A (105) Spare Parts Designation FFT3 EFM-MM 03 TS 18041I/HG(a) T-6IP/51 (a) Recommended tightening torque: 0.5 Nxm 335
