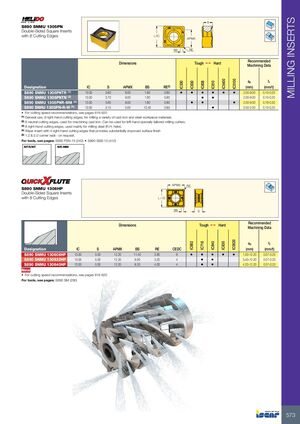

MILLING INSERTS S S890 SNMU 1305PN Double-Sided Square Inserts with 8 Cutting Edges L/IC APMX BS RE Recommended Dimensions Tough 1 Hard Machining Data ap fz IC5400 IC5100 IC330 IC830 IC808 IC810 Designation IC S APMX BS RE(5) (mm) (mm/t) S890 SNMU 1305PNTR (1) 13.00 5.60 9.00 1.80 0.80 • • • • • • 2.00-9.00 0.10-0.20 S890 SNMU 1305PNTN (2) 13.00 5.70 9.00 1.80 0.80 • • 2.00-9.00 0.10-0.20 S890 SNMU 1305PNR-MM (3) 13.00 5.60 9.00 1.80 0.80 • • • 2.00-9.00 0.18-0.30 S890 SNHU 1305PN-R-W (4) 13.00 5.15 5.00 10.40 0.80 • 0.50-2.00 0.10-0.20 • For cutting speed recommendations, see pages 616-620 (1) General use, 8 right-hand cutting edges, for milling a variety of cast iron and steel workpiece materials. (2) 8 neutral cutting edges, used for machining cast iron. Can be used for left-hand specially tailored milling cutters. (3) 8 right-hand cutting edges, used mainly for milling steel (R.H. helix). (4) Wiper insert with 4 right-hand cutting edges that provides substantially improved surface finish (5) 1.2 & 2.0 corner radii - on request. For tools, see pages: S890 FSN-13 (242) • S890 SSB-13 (410) NTR/NT NR-MM APMX RE S890 SNMU 1306HP Double-Sided Square Inserts with 8 Cutting Edges L / IC BS S Recommended Dimensions Tough 1 Hard Machining Data IC5820 ap fz IC882 IC716 IC840 IC830 Designation IC S APMX BS RE CEDC (mm) (mm/t) S890 SNMU 130608HP 13.00 5.00 12.20 11.40 0.80 8 • • • • • 1.00-12.20 0.07-0.20 S890 SNMU 130632HP 13.00 5.00 12.20 9.00 3.20 4 • • 3.40-12.20 0.07-0.20 S890 SNMU 130640HP 13.00 5.00 12.20 8.20 4.00 4 • • 4.20-12.20 0.07-0.20 New • For cutting speed recommendations, see pages 616-620 For tools, see pages: S890 SM (290) 573
