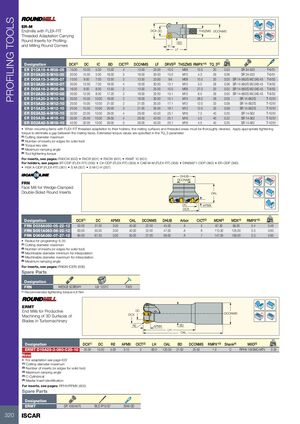

Фрезерные инструменты Iscar 2026 - страница 322

PROFILING TOOLS ER-M Endmills with FLEX-FIT DCX DC THSZMS DCONMS Rd° Threaded Adaptation Carrying Round Inserts for Profiling BD and Milling Round Corners IC LF Designation DCX(1) DC IC BD CICT(2) DCONMS LF DRVS(3) THSZMS RMPX°(4) TQ_3(5) kg ER D10A15-4-M08-05 15.00 10.00 5.00 13.00 4 13.00 23.00 10.0 M08 13.0 20 0.03 SR 34-533 T-6/51 ER D15A20-5-M10-05 20.00 15.00 5.00 18.00 5 18.00 30.00 15.0 M10 4.3 29 0.06 SR 34-533 T-6/51 ER D08A15-3-M08-07 15.00 8.00 7.00 13.50 3 13.50 23.00 9.6 M08 15.0 20 0.03 SR 14-560/S M2.5X0.45 T-8/53 ER D13A20-4-M10-07 20.00 13.00 7.00 18.00 4 18.00 30.00 15.1 M10 5.0 29 0.06 SR 14-560/S M2.5X0.45 T-8/53 ER D08A16-2-M08-08 16.00 8.00 8.00 13.50 2 13.00 25.00 10.0 M08 27.0 20 0.02 SR 14-560/S M2.5X0.45 T-8/53 ER D12A20-2-M10-08 20.00 12.00 8.00 17.20 2 18.00 32.00 15.1 M10 6.5 29 0.05 SR 14-560/S M2.5X0.45 T-8/53 ER D10A20-2-M10-10 20.00 10.00 10.00 18.00 2 18.00 30.00 15.1 M10 28.0 29 0.05 SR 14-562/S T-10/51 ER D15A25-2-M12-10 25.00 15.00 10.00 21.00 2 21.00 35.00 17.1 M12 12.0 33 0.09 SR 14-562/S T-10/51 ER D15A25-3-M12-10 25.00 15.00 10.00 29.00 3 21.00 35.00 18.1 M12 12.0 33 0.09 SR 14-562/S T-10/51 ER D22A32-4-M16-10 32.00 22.00 10.00 29.00 4 29.00 43.00 25.1 M16 7.3 40 0.20 SR 14-562 T-10/51 ER D25A35-4-M16-10 35.00 25.00 10.00 29.00 4 29.00 43.00 25.1 M16 5.5 40 0.22 SR 14-562 T-10/51 ER D32A42-5-M16-10 42.00 32.00 10.00 29.00 5 29.00 43.00 25.1 M16 4.5 40 0.25 SR 14-562 T-10/51 • When mounting items with FLEX-FIT threaded adaptation to their holders, the mating surfaces and threaded areas must be thoroughly cleaned. Apply appropriate tightening torque to eliminate a gap between the mating faces. Estimated torque values are specified in the TQ_3 parameter (1) Cutting diameter maximum (2) Number of inserts (or edges for solid tool) (3) Torque key size (4) Maximum ramping angle (5) Tool tightening torque For inserts, see pages: R90CW (602) • RXCR (601) • RXCW (601) • RXMT 10 (601) For holders, see pages: BT-ODP (FLEX-FIT) (359) • C#-ODP (FLEX-FIT) (359) • CAB M-M (FLEX-FIT) (358) • DIN69871-ODP (360) • ER-ODP (360) • HSK A-ODP (FLEX-FIT) (361) • S M (357) • S M-C-H (357) DHUB Rd° DCONMS FRN Face Mill for Wedge-Clamped Double-Sided Round Inserts OAL DC APMX DCX Designation DCX(1) DC APMX OAL DCONMS DHUB Arbor CICT(2) MDN(3) MDX(4) RMPX°(5) kg FRN D038A050-05-22-12 50.00 37.30 3.00 40.00 22.00 45.00 A 5 87.30 99.00 0.4 0.46 FRN D051A063-06-22-12 63.00 50.30 3.00 40.00 22.00 47.00 A 6 113.30 125.00 0.3 0.63 FRN D068A080-07-27-12 80.00 67.30 3.00 50.00 27.00 58.00 A 7 147.30 159.00 0.3 0.85 • Radius for programing: 6.35 (1) Cutting diameter maximum (2) Number of inserts (or edges for solid tool) (3) Machinable diameter minimum for interpolation (4) Machinable diameter maximum for interpolation (5) Maximum ramping angle For inserts, see pages: RNGN (CER) (606) Spare Parts Designation FRN WEDGE SCREW(a) LW 1207C T-W3 (a) Recommended tightening torque:4.8 Nm ERMT End Mills for Productive DC DCONMS Rd° DCX Machining of 3D Surfaces of Blades in Turbomachinery RE APMX BD LH OAL Designation DCX(1) DC RE APMX CICT(2) LH OAL BD DCONMS RMPX°(3) Shank(4) MIID(5) kg ERMT D15A25-3-060-C25-10 25.00 15.00 5.00 3.10 3 60.0 120.00 21.00 25.00 1.0 C RPHX 1003MO-MT5 0.33 New • For adaptation see page 622 (1) Cutting diameter maximum (2) Number of inserts (or edges for solid tool) (3) Maximum ramping angle (4) C-Cylindrical (5) Master insert identification For inserts, see pages: RPHX/RPMX (605) Spare Parts Designation ERMT SR 10504970 BLD IP15/S7 SW6-SD 320 ISCAR
