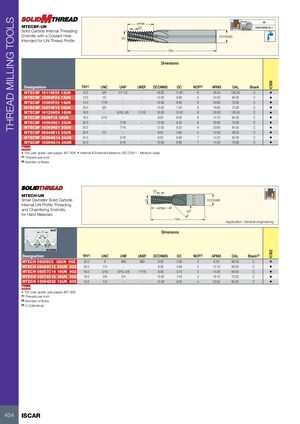

THREAD MILLING TOOLS 2B APMX MTECBF-UN TP ANSI/ASME B1.1 Solid Carbide Internal Threading Endmills with a Coolant Hole. DCONMS DC Intended for UN Thread Profile OAL Dimensions IC908 Designation TPI(1) UNC UNF UNEF DCONMS DC NOF(2) APMX OAL Shank MTECBF 16116F26 12UN 12.0 5/8 1/1-1/2 - 16.00 11.60 6 26.40 105.00 C • MTECBF 12098F24 13UN 13.0 1/2 - - 12.00 9.80 6 24.30 84.00 C • MTECBF 10085F20 14UN 14.0 7/16 - - 10.00 8.50 6 20.80 73.00 C • MTECBF 10074F16 16UN 16.0 3/8 - - 10.00 7.40 6 16.60 73.00 C • MTECBF 16125H26 18UN 18.0 - 9/16, 5/8 11/16 16.00 12.50 8 26.00 105.00 C • MTECBF 0806F14 18UN 18.0 5/16 - - 8.00 6.00 6 14.70 64.00 C • MTECBF 10092H21 20UN 20.0 - 7/16 - 10.00 9.20 8 20.90 73.00 C • MTECBF 12092H21 20UN 20.0 - 7/16 - 12.00 9.20 8 20.90 84.00 C • MTECBF 06048E12 20UN 20.0 1/4 - - 6.00 4.80 5 12.00 58.00 C • MTECBF 08066G14 24UN 24.0 - 5/16 - 8.00 6.60 7 14.20 64.00 C • MTECBF 10066G14 24UN 24.0 - 5/16 - 10.00 6.60 7 14.20 73.00 C • New • For user guide, see pages 497-506 • Internal & External tolerance: ISO 228-1 - Medium class (1) Threads per inch (2) Number of flutes TP MTECH-UN Small Diameter Solid Carbide DC DCONMS Internal UN Profile Threading APMX and Chamfering Endmills, 45º for Hard Materials OAL Application: General engineering NUT P Dimensions P/4 60˚ P/8 SCREW IC902 Designation TPI(1) UNC UNF UNEF DCONMS DC NOF(2) APMX OAL Shank(3) MTECH 06026C5 32UN 902 32.0 6 999 999 6.00 2.60 3 6.70 58.00 C • MTECH 06048C12 20UN 902 20.0 1/4 - - 6.00 4.80 3 12.10 58.00 C • MTECH 08057C14 18UN 902 18.0 5/16 9/16, 5/8 11/16 8.00 5.70 3 14.80 64.00 C • MTECH 10074C16 16UN 902 16.0 3/8 3/4 - 10.00 7.40 3 16.70 73.00 C • MTECH 12094D22 13UN 902 13.0 1/2 - - 12.00 9.40 4 22.50 84.00 C • New • For user guide, see pages 497-506 (1) Threads per inch (2) Number of flutes (3) C-Cylindrical 454 ISCAR
