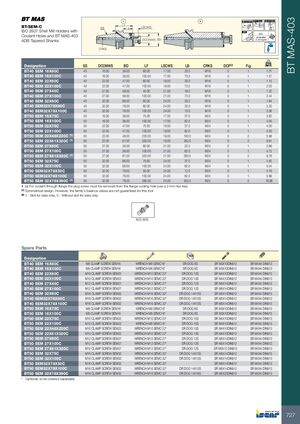

BT MAS-403 1 2 A 0.005 A AT3 Taper 58-60 HRc BT-SEM-C LF LSCWS SS LB ISO 3937 Shell Mill Holders with (a) √N5 G2.5 Coolant Holes and BT MAS-403 20,000 RPM ADB Tapered Shanks DCONWS BD or U<1.0 gmm CRKS kg Designation SS DCONWS BD LF LSCWS LB CRKS DCP(2) Fig. BT40 SEM 16X60C 40 16.00 38.00 60.00 17.00 33.0 M16 0 1. 1.21 BT40 SEM 16X100C 40 16.00 38.00 100.00 17.00 73.0 M16 0 1. 1.57 BT40 SEM 22X60C 40 22.00 47.00 60.00 19.00 33.0 M16 0 1. 1.10 BT40 SEM 22X100C 40 22.00 47.00 100.00 19.00 73.0 M16 0 1. 2.03 BT40 SEM 27X45C 40 27.00 58.00 45.00 21.00 18.0 M16 0 1. 1.32 BT40 SEM 27X100C 40 27.00 58.00 100.00 21.00 73.0 M16 0 1. 2.44 BT40 SEM 32X60C 40 32.00 66.00 60.00 24.00 33.0 M16 0 1. 1.84 BT40 SEM32X78X60C 40 32.00 78.00 60.00 24.00 33.0 M16 0 1. 2.20 BT40 SEM32X78X100C 40 32.00 78.00 100.00 24.00 73.0 M16 0 1. 3.36 BT50 SEM 16X75C 50 16.00 38.00 75.00 17.00 37.0 M24 0 1. 3.82 BT50 SEM 16X100C 50 16.00 38.00 100.00 17.00 62.0 M24 0 1. 4.00 BT50 SEM 22X75C 50 22.00 47.00 75.00 19.00 37.0 M24 0 1. 4.00 BT50 SEM 22X100C 50 22.00 47.00 100.00 19.00 62.0 M24 0 1. 4.30 BT50 SEM 22X48X220C (1) 50 22.00 48.00 220.00 19.00 182.0 M24 0 2. 5.98 BT50 SEM 22X61X320C (1) 50 22.00 61.00 320.00 19.00 282.0 M24 0 2. 9.91 BT50 SEM 27X60C 50 27.00 58.00 60.00 21.00 22.0 M24 0 1. 3.96 BT50 SEM 27X100C 50 27.00 58.00 100.00 21.00 62.0 M24 0 1. 4.72 BT50 SEM 27X61X320C (1) 50 27.00 61.00 320.00 21.00 282.0 M24 0 2. 9.78 BT50 SEM 32X75C 50 32.00 66.00 75.00 24.00 37.0 M24 0 1. 4.50 BT50 SEM 32X100C 50 32.00 66.00 100.00 24.00 62.0 M24 0 1. 5.04 BT50 SEM32X78X50C 50 32.00 78.00 50.00 24.00 12.0 M24 0 1. 4.16 BT50 SEM32X78X100C 50 32.00 78.00 100.00 24.00 62.0 M24 0 1. 5.99 BT50 SEM 32X78X390C (1) 50 32.00 78.00 390.00 24.00 352.0 M24 0 2. 16.66 • (a) For coolant through flange the plug screw must be removed from the flange cooling hole (use a 2 mm hex key) (1) Symmetrical design. However, the family’s balance values are not guaranteed for this tool (2) 1 - Slot for data chip, 0 - Without slot for data chip 802-805 Spare Parts Designation BT40 SEM 16X60C M8 CLAMP SCREW SEM16 WRENCH M8 SEMC16* DR.DOG 8S SR M3X10DIN912 SR M4X4 DIN913 BT40 SEM 16X100C M8 CLAMP SCREW SEM16 WRENCH M8 SEMC16* DR.DOG 8S SR M3X10DIN912 SR M4X4 DIN913 BT40 SEM 22X60C M10 CLAMP SCREW SEM22 WRENCH M10 SEMC 22* DR.DOG 10S SR M4X10DIN912 SR M4X4 DIN913 BT40 SEM 22X100C M10 CLAMP SCREW SEM22 WRENCH M10 SEMC 22* DR.DOG 10S SR M4X10DIN912 SR M4X4 DIN913 BT40 SEM 27X45C M12 CLAMP SCREW SEM27 WRENCH M12 SEMC 27* DR.DOG 12S SR M5X14DIN912 SR M4X4 DIN913 BT40 SEM 27X100C M12 CLAMP SCREW SEM27 WRENCH M12 SEMC 27* DR.DOG 12S SR M5X14DIN912 SR M4X4 DIN913 BT40 SEM 32X60C M16 CLAMP SCREW SEM32 WRENCH M16 SEMC 32* DR.DOG 14X13S SR M5X14DIN912 SR M4X4 DIN913 BT40 SEM32X78X60C M16 CLAMP SCREW SEM32 WRENCH M16 SEMC 32* DR.DOG 14X13S SR M5X14DIN912 SR M4X4 DIN913 BT40 SEM32X78X100C M16 CLAMP SCREW SEM32 WRENCH M16 SEMC 32* DR.DOG 14X13S SR M5X14DIN912 SR M4X4 DIN913 BT50 SEM 16X75C M8 CLAMP SCREW SEM16 WRENCH M8 SEMC16* DR.DOG 8S SR M3X10DIN912 SR M4X4 DIN913 BT50 SEM 16X100C M8 CLAMP SCREW SEM16 WRENCH M8 SEMC16* DR.DOG 8S SR M3X10DIN912 SR M4X4 DIN913 BT50 SEM 22X75C M10 CLAMP SCREW SEM22 WRENCH M10 SEMC 22* DR.DOG 10S SR M4X10DIN912 SR M4X4 DIN913 BT50 SEM 22X100C M10 CLAMP SCREW SEM22 WRENCH M8 SEMC16* DR.DOG 10S SR M4X10DIN912 SR M4X4 DIN913 BT50 SEM 22X48X220C M10 CLAMP SCREW SEM22 WRENCH M10 SEMC 22* DR.DOG 10S SR M4X10DIN912 SR M4X4 DIN913 BT50 SEM 22X61X320C M10 CLAMP SCREW SEM22 WRENCH M10 SEMC 22* DR.DOG 10S SR M4X10DIN912 SR M4X4 DIN913 BT50 SEM 27X60C M12 CLAMP SCREW SEM27 WRENCH M12 SEMC 27* DR.DOG 12S SR M5X14DIN912 SR M4X4 DIN913 BT50 SEM 27X100C M12 CLAMP SCREW SEM27 WRENCH M12 SEMC 27* DR.DOG 12S SR M5X14DIN912 SR M4X4 DIN913 BT50 SEM 27X61X320C M12 CLAMP SCREW SEM27 WRENCH M12 SEMC 27* DR.DOG 12S SR M5X12 DIN912 SR M4X4 DIN913 BT50 SEM 32X75C M16 CLAMP SCREW SEM32 WRENCH M16 SEMC 32* DR.DOG 14X13S SR M5X14DIN912 SR M4X4 DIN913 BT50 SEM 32X100C M16 CLAMP SCREW SEM32 WRENCH M16 SEMC 32* DR.DOG 14X13S SR M5X14DIN912 SR M4X4 DIN913 BT50 SEM32X78X50C M16 CLAMP SCREW SEM32 WRENCH M16 SEMC 32* SR M5X14DIN912 SR M4X4 DIN913 BT50 SEM32X78X100C M16 CLAMP SCREW SEM32 WRENCH M16 SEMC 32* DR.DOG 14X13S SR M5X14DIN912 SR M4X4 DIN913 BT50 SEM 32X78X390C M16 CLAMP SCREW SEM32 WRENCH M16 SEMC 32* DR.DOG 14X16S SR M5X20DIN912 SR M4X4 DIN913 * Optional, to be ordered separately 727
