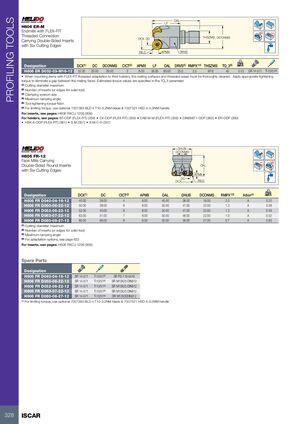

Фрезерные инструменты Iscar 2026 - страница 330

PROFILING TOOLS OAL LF H606 ER-M Endmills with FLEX-FIT Rd° Threaded Connection THSZMS DCONMS DCX DC Carrying Double-Sided Inserts with Six Cutting Edges R6.0 APMX DRVS kg Designation DCX(1) DC DCONMS CICT(2) APMX LF OAL DRVS(3) RMPX°(4) THSZMS TQ_3(5) H606 ER D032-03-M16-12 32.00 20.00 29.00 3 6.00 35.00 60.00 25.0 2.5 M16 40 0.15 SR 14-571 T-10/51(a) • When mounting items with FLEX-FIT threaded adaptation to their holders, the mating surfaces and threaded areas must be thoroughly cleaned. Apply appropriate tightening torque to eliminate a gap between the mating faces. Estimated torque values are specified in the TQ_3 parameter (1) Cutting diameter maximum (2) Number of inserts (or edges for solid tool) (3) Clamping wrench size (4) Maximum ramping angle (5) Tool tightening torque Nxm (a) For limiting torque, use optional 7007383 BLD 4 T10-3.2NM blade & 7007321 HSD 4-3.2NM handle For inserts, see pages: H606 RXCU 1206 (606) For holders, see pages: BT-ODP (FLEX-FIT) (359) • C#-ODP (FLEX-FIT) (359) • CAB M-M (FLEX-FIT) (358) • DIN69871-ODP (360) • ER-ODP (360) • HSK A-ODP (FLEX-FIT) (361) • S M (357) • S M-C-H (357) DHUB DCONMS H606 FR-12 Face Mills Carrying Rd° Double-Sided Round Inserts OAL with Six Cutting Edges APMX DC DCX R6.0 kg Designation DCX(1) DC CICT(2) APMX OAL DHUB DCONMS RMPX°(3) Arbor(4) H606 FR D040-04-16-12 40.00 28.00 4 6.00 45.00 38.00 16.00 2.0 A 0.22 H606 FR D050-06-22-12 50.00 38.00 6 6.00 50.00 47.00 22.00 1.3 A 0.38 H606 FR D052-06-22-12 52.00 40.00 6 6.00 50.00 47.00 22.00 1.3 A 0.39 H606 FR D063-07-22-12 63.00 51.00 7 6.00 50.00 48.00 22.00 1.0 A 0.52 H606 FR D080-08-27-12 80.00 68.00 8 6.00 50.00 58.00 27.00 0.7 A 0.83 (1) Cutting diameter maximum (2) Number of inserts (or edges for solid tool) (3) Maximum ramping angle (4) For adaptation options, see page 622 For inserts, see pages: H606 RXCU 1206 (606) Spare Parts Designation H606 FR D040-04-16-12 SR 14-571 T-10/51(a) SR PS 118-0416 H606 FR D050-06-22-12 SR 14-571 T-10/51(a) SR M10X25 DIN912 H606 FR D052-06-22-12 SR 14-571 T-10/51(a) SR M10X25 DIN912 H606 FR D063-07-22-12 SR 14-571 T-10/51(a) SR M10X25 DIN912 H606 FR D080-08-27-12 SR 14-571 T-10/51(a) SR M12X30DIN912 (a) For limiting torque, use optional 7007383 BLD 4 T10-3.2NM blade & 7007321 HSD 4-3.2NM handle 328 ISCAR
